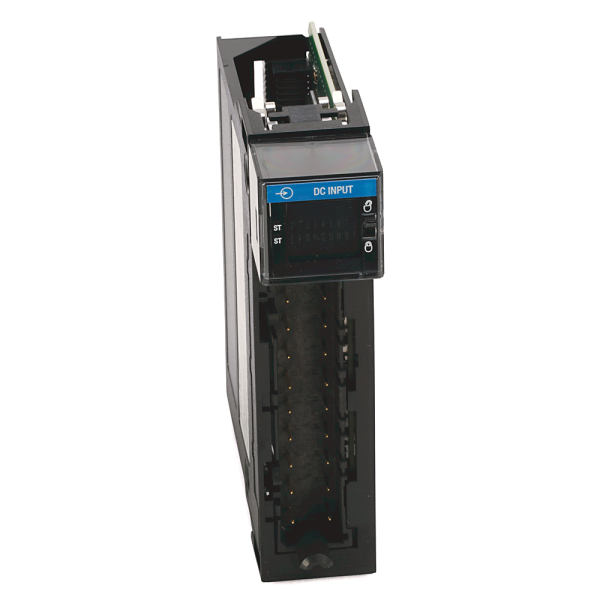

ControlLogix 16 Pt 12/24V DC D/I Module
SKU: 1756-IB16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB16K is a robust, conformally coated digital input module for the ControlLogix-XT platform, with 16 sink-type input channels that monitor 12/24V DC signals from field devices like as sensors, switches, and relays.
Its XT rating and conformal coating make it suitable for severe industrial settings such as high humidity, corrosive gasses, and extreme temperatures.
Each input channel has fast response times and unique LED indicators for real-time status monitoring.
The module works flawlessly with Studio 5000 software for configuration and diagnostics, and it allows hot-swapping, allowing maintenance without system interruption.
Whether in outdoor installations, chemical facilities, or heavy industries, the 1756-IB16K provides dependable DC signal acquisition with improved environmental protection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 16 digital inputs.
Voltage Range: 10–30V DC (nominal 12/24V DC).
Input Type: Sink (current flows into the module).
Input Current: ~6 mA @ 24V DC.
Input Delay:
On: 0.5 ms.
Off: 0.5 ms.
Diagnostics: Input status, module health.
Environmental Ratings:
Conformal Coating: Yes (XT-rated for corrosive and humid environments).
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Module Integration:
Hot-Swappable: Yes.
Status Indicators: Individual LEDs for each input channel.
Terminal Block: Requires 36-pin RTB (Removable Terminal Block).
Backplane Current Draw:
120 mA @ 5.1V DC.
100 mA @ 24V DC.
Power Dissipation: ~3.5 W.
