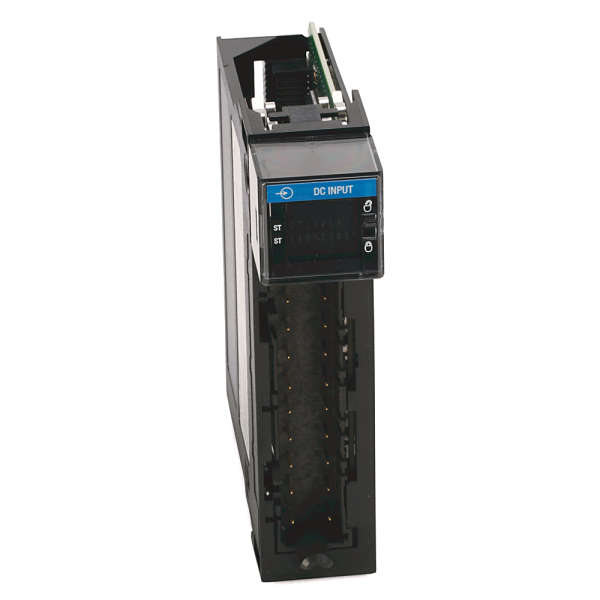

ControlLogix 32 Point Digital Input
SKU: 1756-IB32K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IB32K is a conformally coated digital input module for the ControlLogix-XT platform, with 32 sink-type input channels for monitoring 12/24V DC signals from field devices such sensors, switches, and relays.
Its XT grade and protective coating make it suited for severe industrial conditions characterized by high humidity, corrosive gasses, and extreme temperatures.
Each input channel has fast response times and unique LED indicators for real-time status monitoring.
The module allows hot-swapping, allowing maintenance without system downtime, and it works flawlessly with Studio 5000 software for configuration and diagnostics.
Whether utilized in outdoor installations, chemical processing, or heavy manufacturing, the 1756-IB32K provides dependable, high-density DC signal acquisition with improved environmental protection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 32 digital inputs.
Voltage Range: 10–30V DC (nominal 12/24V DC).
Input Type: Sink (current flows into the module).
Input Current: ~6 mA @ 24V DC.
Input Delay:
On: 0.5 ms.
Off: 0.5 ms.
Diagnostics: Input status, module health.
Environmental Ratings:
Conformal Coating: Yes (XT-rated for corrosive and humid environments).
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Module Integration:
Hot-Swappable: Yes.
Status Indicators: Individual LEDs for each input channel.
Terminal Block: Requires 36-pin RTB (Removable Terminal Block) or 1492 IFM.
Backplane Current Draw:
120 mA @ 5.1V DC.
100 mA @ 24V DC.
Power Dissipation: ~3.5 W.
