ControlLogix 16 Point A/I Module
SKU: 1756-IF16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

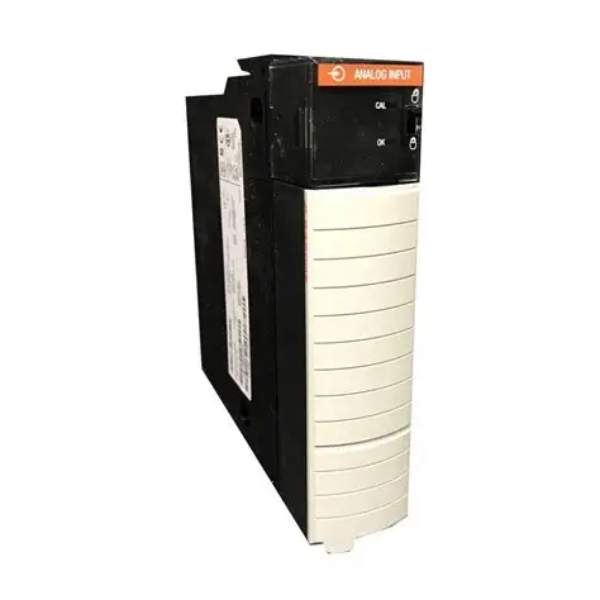

The 1756-IF16 is a 16-channel analogue input module for the ControlLogix platform that connects to a variety of analogue field devices such as transmitters, sensors, and instruments.
It can accept both voltage and current input signals, making it suitable for process control applications in industries such as manufacturing, energy, and water treatment.
Each input channel is separately adjustable, allowing users to mix and match signal types (for example, 0-10V and 4-20mA) inside the same module.
The module has high-resolution conversion, software-configurable filters, and diagnostic functions to assure accurate and dependable data collection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Number of Inputs: 16 single-ended analogue channels.
Signal Types Supported:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16 bits.
Accuracy: ±0.1% full scale (typical).
Input Impedance:
Voltage: >1 MΩ.
Current: 250 Ω.
Conversion Rate: Configurable per channel.
Isolation: Channel-to-backplane isolation; channels are not isolated from each other.
Overvoltage Protection: Yes.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: Module and channel-level LEDs.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
