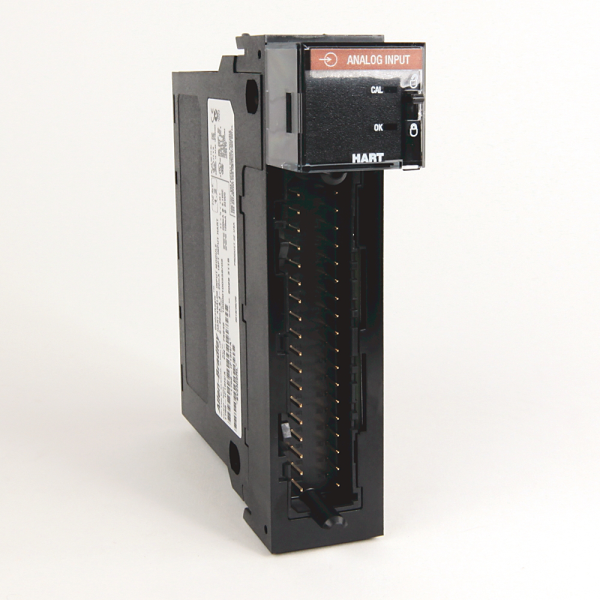

ControlLogix 16 Pt A/I HART Module
SKU: 1756-IF16H
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF16H is a high-performance 16-channel analogue input module developed for ControlLogix systems that supports both normal 4-20 mA analogue signals and the HART (Highway Addressable Remote Transducer) communication protocol.
It supports the smooth integration of analogue measurements and digital diagnostics from HART-enabled field devices, making it perfect for process control, instrumentation, and smart sensor networks.
Signal Support: Accepts 0-20 mA and 4-20 mA current loop signals.
HART Capability: Each channel has a dedicated HART modem, providing access to up to four HART variables per device.
Conversion Method: Uses a sequential approximation ADC with a resolution of 16-21 bits.
Analog alone, analogue + HART PV, or analogue + complete HART data are the data formats that can be chosen based on the application.
Accuracy: Greater than 0.13% of range across all filters.
Scan time:
Analog input ranges from 11 to 328 milliseconds (filter dependent).
HART scan time: ~1 second with all channels activated.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specifications:
Number of Channels: 16 single-ended analogue inputs.
Signal Type: 4–20 mA current loop.
HART Support:
Each channel includes a dedicated HART modem.
Supports up to 4 HART variables per device.
Enables device diagnostics and remote configuration.
Resolution: 16 to 21 bits (depending on filter settings).
Accuracy: ±0.13% of full scale.
Update Rate: Configurable per channel.
Conversion Method: Successive approximation ADC.
Input Impedance: ~250 Ω typical.
Power & Backplane Requirements:
Backplane Current Draw:
5.1V DC: ~250 mA.
24V DC: ~3 mA.
Power Dissipation: ~5.5 W.
Isolation & Protection:
Channel-to-Channel Isolation: Yes.
Channel-to-Backplane Isolation: Yes.
Overrange Detection: Supported.
Open Circuit Detection: Supported.
Reverse Polarity Protection: Yes.
Environmental Ratings:
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: –40°C to 85°C (–40°F to 185°F).
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g operational.
Vibration Resistance: 10–500 Hz, 5g.
