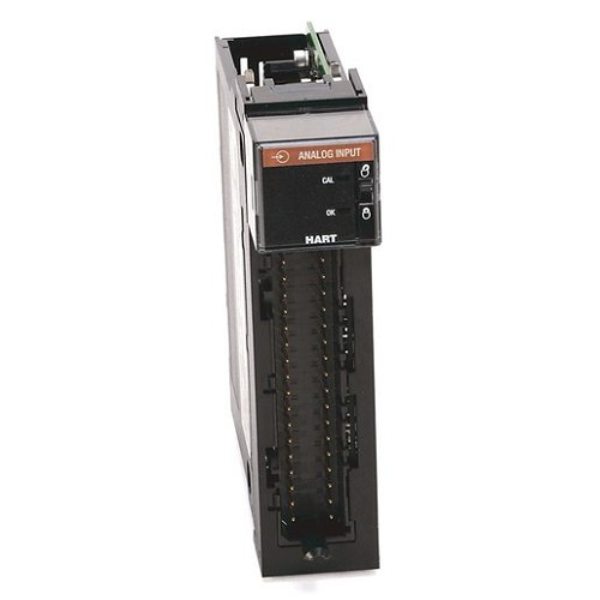

ControlLogix 16 Pt A/I HART Module
SKU: 1756-IF16HK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF16HK is a 16-channel analogue input module for the ControlLogix platform that can handle both normal analogue signals and HART transmission.
Analog process variables, digital diagnostics, and secondary variables from HART-enabled field devices—like smart transmitters and sensors—can all be integrated with it.
This module is best suited for process automation applications that require advanced diagnostics, remote configuration, and multivariable data collecting.
It offers point-to-point HART connectivity, allowing you to view device status, calibration data, and warnings directly from the controller.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Number of Inputs: 16 single-ended analogue channels.
Signal Types Supported:
Analog: 0–20 mA, 4–20 mA.
HART: FSK modulation over 4–20 mA loop.
Resolution: 16 bits.
Accuracy: ±0.1% full scale (typical).
Input Impedance: 250 Ω (for current).
Conversion Rate: Configurable per channel.
Isolation: Channel-to-backplane isolation; channels are not isolated from each other.
HART Protocol Support:
Point-to-point communication.
Device status, diagnostics, and secondary variables.
Compatible with HART 5, 6, and 7.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: Module and channel-level LEDs.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer + FactoryTalk AssetCentre (for HART diagnostics).
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
