ControlLogix 16 Point Analog Input HART
SKU: 1756-IF16IH
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

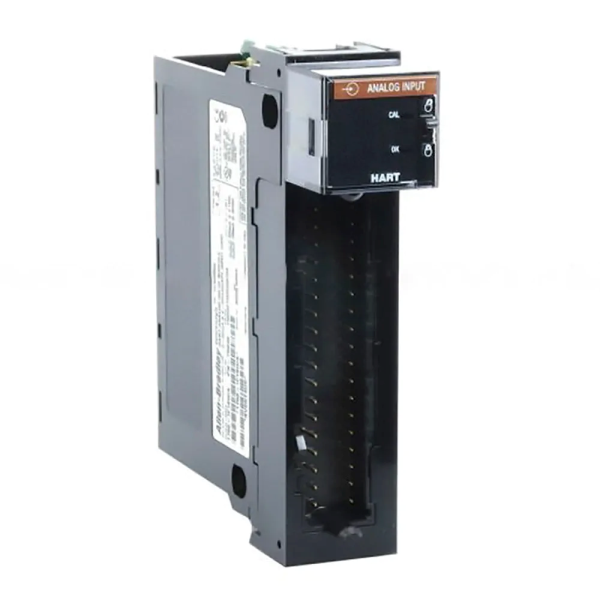

The 1756-IF16IH is a high-performance analogue input module for the ControlLogix platform that includes 16 differential current input channels and integrated HART communication.
It's designed to take precise analogue measurements (usually 4-20 mA) while also obtaining digital data from HART-enabled field devices including transmitters, flow meters, and pressure sensors.
This dual-function feature enables users to access both process variables and device diagnostics from a single module, simplifying configuration, boosting predictive maintenance, and increasing operational efficiency.
The module has advanced capabilities like as signal quality monitoring, device status reporting, and secondary variable access, which are all programmable via Studio 5000 and FactoryTalk AssetCentre.
The 1756-IF16IH provides intelligent, scalable analogue input with embedded device intelligence, making it perfect for sectors including water treatment, chemical processing, and oil and gas.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specifications:
Channels: 16 analogue inputs.
HART Protocol: Supported on all channels.
Input Range: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Input Type: Differential current.
Diagnostics:
Signal quality.
Device status.
Communication health.
Module health indicators.
Module Integration:
Hot-Swappable: Yes.
Status Indicators: LEDs for communication, health, and input status.
Terminal Block Options:
Removable Terminal Block (RTB).
1492 Analog Interface Module (AIFM).
Backplane Current Draw: ~250 mA @ 5.1V DC.
Configuration Tools: Studio 5000, FactoryTalk AssetCentre.
Data Access: Primary and secondary variables from HART devices.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
