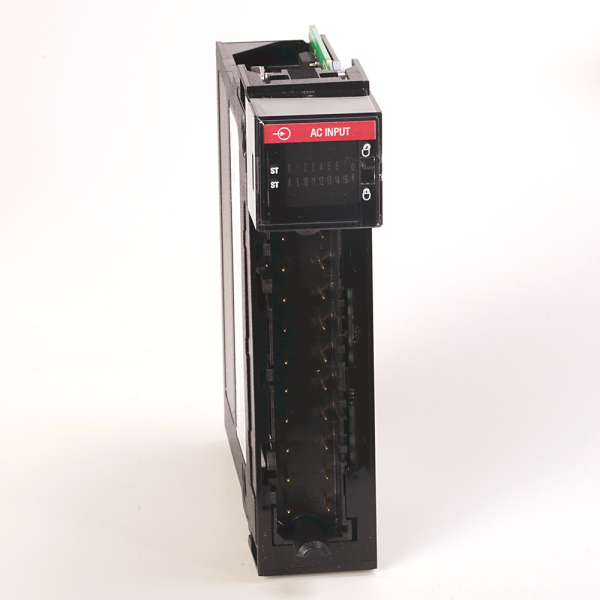

ControlLogix 16 Point A/I Module
SKU: 1756-IF16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF16K is a ControlLogix-compliant analogue input module with 16 input channels for monitoring analogue signals such as voltage and current.
It supports several wire configurations, including:
16 single-ended inputs.
Eight differential inputs.
Four high-speed differential inputs.
Its adaptability makes it perfect for applications that require precise analogue data capture from sensors such as pressure transducers, flow meters, and temperature probes.
Main Features:
Signal types include ±10V, 0-10V, 0-5V, and 0-20 mA.
Resolution: Up to 16 bits for high-precision measurements.
Conversion time is adjustable, ranging from <80 ms to 5% of full scale.
Conformal coatings protect against moisture, dust, and corrosive substances.
Terminal block compatibility: Compatible with 1756-TBCH and 1756-TBS6H RTBs.
Mounting: It fits into any ControlLogix chassis slot.
Buy currently uses Select Automation shop pricing and checkout.
Input Configuration:
Channels:
16 single ended.
8 differentials.
4 high-speed differentials.
Signal types supported:
±10V.
0–10V.
0–5V.
0–20 mA.
Resolution & Accuracy:
Resolution:
±10.25V → 320 µV/count (15 bits + sign bipolar).
0–10.25V → 160 µV/count (16 bits).
0–5.125V → 80 µV/count (16 bits).
0–20.5 mA → 0.32 µA/count (16 bits).
Conversion time: <80 ms to 5% of full-scale.
Mechanical & Environmental:
Conformal coating: Yes – protects against moisture, dust, and corrosive agents.
Terminal block compatibility:
1756-TBCH.
1756-TBS6H.
Mounting: Standard ControlLogix chassis slot.
Operating temperature: Typically –20°C to 60°C.
