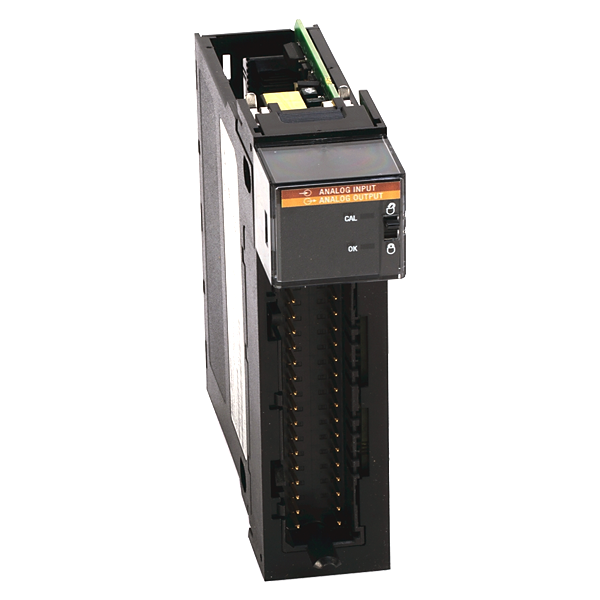

ControlLogix 4 Point Analog Comb Module
SKU: 1756-IF4FXOF2F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A combined analogue module for the ControlLogix platform, the 1756-IF4FXOF2F has two analogue outputs and four analogue inputs in a single slot.
It is intended for high-performance applications requiring precise analogue signal acquisition and control, such as process automation, motion control, and sophisticated instrumentation.
This module supports the floating-point data format, which allows for high-resolution measurements and calculations.
It is suited for systems requiring tiny analogue I/O, flexible signal support, and advanced diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Analog Inputs:
Channels: 4.
Signal Types:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 24-bit floating point.
Accuracy: ±0.05% full scale (typical).
Input Impedance:
Voltage: >1 MΩ.
Current: 250 Ω.
Sampling Rate: Configurable per channel.
Isolation: Channel-to-backplane isolation.
Analog Outputs:
Channels: 2.
Signal Types:
Voltage: ±10V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit floating point.
Accuracy: ±0.1% full scale.
Output Drive:
Voltage: 10 mA max.
Current: 0–20 mA into 0–1000 Ω load.
Isolation: Channel-to-backplane isolation.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: LEDs for input/output activity.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
