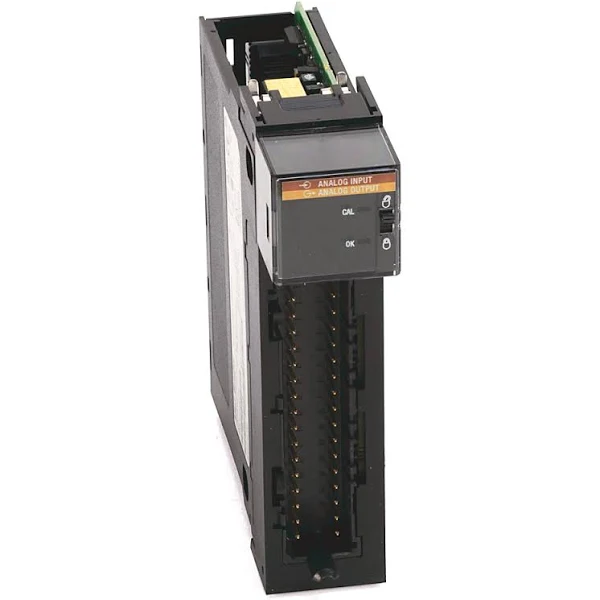

ControlLogix 4 Point Analog Comb Module
SKU: 1756-IF4FXOF2FK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF4FXOF2FK is a high-speed analogue combination module for the ControlLogix platform that combines four differential analogue inputs and two analogue outputs.
It is intended for applications that require rapid, precise analogue signal processing, such as sophisticated process control, measurement, and real-time automation.
This module supports voltage and current ranges (±10V and 0-20mA), with sub-millisecond reaction rates for fast data acquisition and output updates.
It incorporates conformal coating for increased endurance in tough environments, making it appropriate for XT-rated systems that are subjected to moisture, dust, or corrosive conditions.
With integrated diagnostics, high-resolution conversion, and versatile configuration choices, the 1756-IF4FXOF2FK provides dependable performance and space-saving efficiency for mixed analogue I/O requirements.
Buy currently uses Select Automation shop pricing and checkout.
General Module Specs:
Module Type: Analog combination (4 inputs + 2 outputs).
Chassis Compatibility: ControlLogix.
Backplane Current Draw:
375 mA @ 5.1V DC.
100 mA @ 24V DC.
Power Dissipation: 4.3 W.
Conformal Coating: Yes (XT-rated for harsh environments).
Analog Input Specifications:
Channels: 4 differential inputs.
Input Ranges:
±10.5V.
0–10.5V.
0–5.25V.
0–21 mA.
Resolution:
14-bit effective across ±10.5V.
13-bit effective across 0–10.5V.
Accuracy @ 25°C:
Voltage: ±0.1% of range.
Current: ±0.1% of range.
Repeatability: ±1 LSB (1.3 mV).
Acquisition Time:
300 µs (firmware rev. 3 or later).
400 µs (firmware rev. 1).
Analog Output Specifications:
Channels: 2 outputs.
Output Ranges:
±10V.
0–20 mA.
Resolution: 14-bit.
Accuracy: ±0.1% of range.
Update Rate: Sub-millisecond.
Environmental Ratings:
Operating Temp: –25°C to +70°C.
Storage Temp: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock: 15g operating, 30g non-operating.
Vibration: 10–500 Hz, 5g.
