ControlLogix 8 Point A/I Module
SKU: 1756-IF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

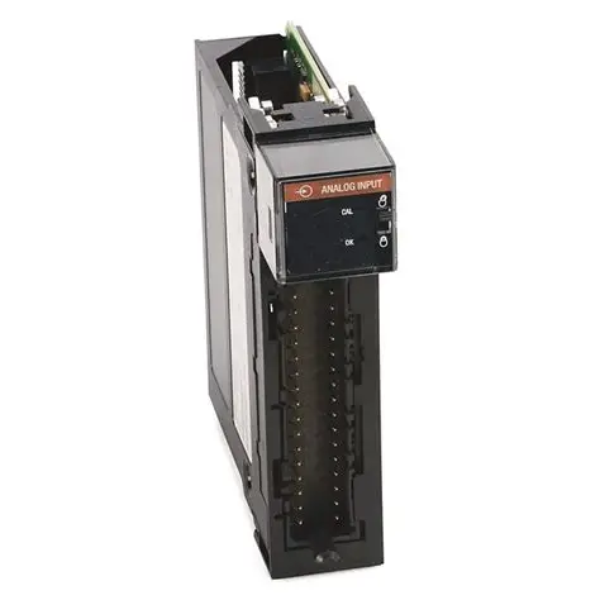

The 1756-IF8 is an analogue input module for the ControlLogix platform that includes eight programmable input channels for detecting voltage or current signals from field devices like sensors and transmitters.
It accepts both single-ended and differential inputs, allowing it easy integration into a variety of industrial applications.
With 16-bit resolution, adjustable scaling, and built-in diagnostics, the 1756-IF8 provides precise and dependable analogue data capture.
It's perfect for process control, environmental monitoring, and machine automation applications that require precise analogue measurement and real-time feedback.
The module allows hot-swapping, has LED indicators for channel status, and works flawlessly with Studio 5000 software for configuration and monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Channels: 8 analogue input channels.
Input Types: Single-ended or differential.
Input Ranges:
±10V.
0–10V.
0–5V.
0–20 mA.
Resolution: 16-bit.
Accuracy: ±0.1% of full scale.
Conversion Time: ~1 ms per channel.
Update Rate: Configurable per channel.
Module Power & Installation:
Backplane Current Draw:
150 mA @ 5V DC.
40 mA @ 24V DC.
Power Dissipation: Max 1.73 W (voltage mode), 2.0 W (current mode).
Terminal Block: Requires 36-pin RTB (Removable Terminal Block).
Hot-Swappable: Yes.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
