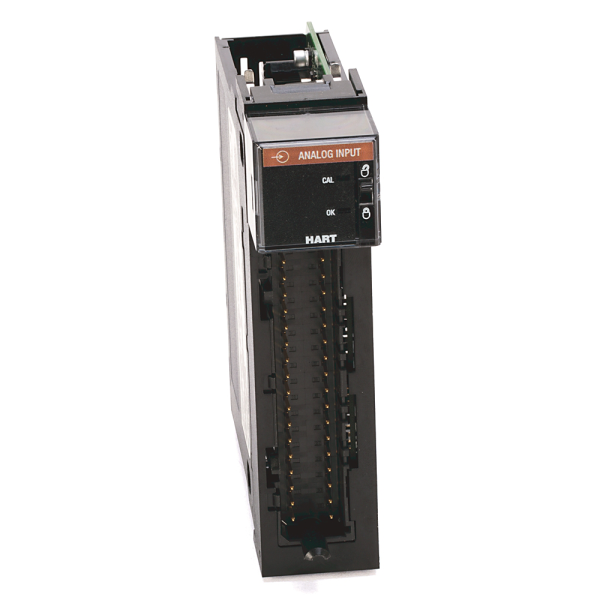

ControlLogix 8 Point A/I HART Module

Description: The 1756-IF8H is a ControlLogix high-density analog input module with 8 differential channels with HART integration. It is designed for process automation applications that require both analog measurements and digital diagnostics from field equipment. In addition to collecting HART data such as device status, diagnostics, and numerous process variables (PV, SV, TV, and FV), each channel may read conventional analog signals, including 0–20 mA, 4–20 mA, ±10V, and 0–10V. This dual feature enables engineers to simplify wiring, minimize hardware costs, and improve visibility over field instrumentation. The module has a single HART modem that connects with all channels, allowing for centralized configuration, calibration, and asset management. It is compatible with FactoryTalk AssetCentre and supports FDT/DTM technology, enabling for smooth interaction with device-specific tools from manufacturers such as Endress+Hauser and Metso. The 1756-IF8H is suitable for applications that require precision, reliability, and smart diagnostics, such as chemical processing, oil and gas, and water treatment systems, thanks to features like timestamping, configurable filter frequencies, and open-circuit detection.
