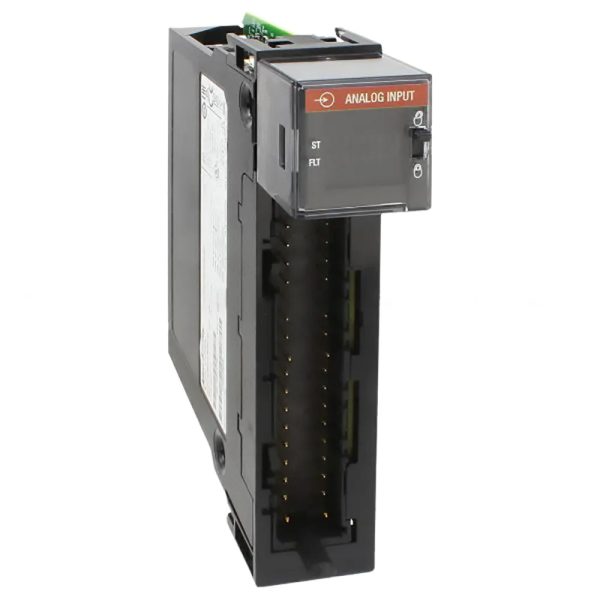

ControlLogix 8 Point Analog Input
SKU: 1756-IF8I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF8I is an 8-channel analogue input module for the ControlLogix platform that offers individual channel isolation for high-precision and reliable analogue signal acquisition.
It can accept both voltage and current inputs, making it perfect for demanding industrial applications including process control, instrumentation, and energy management.
Each input channel is electrically isolated from the others, reducing signal interference and allowing for the safe connection of devices operating at different potentials.
This separation makes the module particularly helpful in noisy situations or systems with multiple signal kinds.
Buy currently uses Select Automation shop pricing and checkout.
Analog Inputs:
Channels: 8 individually isolated.
Signal Types Supported:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16 bits.
Accuracy: ±0.1% full scale (typical).
Input Impedance:
Voltage: >1 MΩ.
Current: 250 Ω.
Conversion Rate: Configurable per channel.
Isolation: Channel-to-channel and channel-to-backplane.
Overvoltage Protection: Yes.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: LEDs for module and channel status.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
