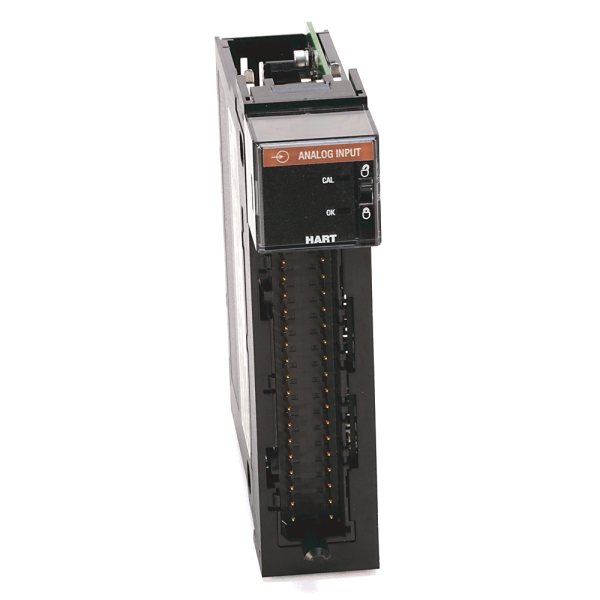

ControlLogix 8 Pt A/I HART Iso Module
SKU: 1756-IF8IHK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF8IHK is a high-performance analog input module from the ControlLogix family that includes 8 isolated differential current input channels with HART connectivity.
Each channel has its own dedicated HART modem, enabling for simultaneous analog measurement and digital connection with smart field devices—perfect for process automation systems that require precision, diagnostics, and flexibility.
This module accepts 0-20 mA and 4-20 mA inputs with 16 to 21-bit resolution, ensuring reliable signal acquisition.
It is a HART master that is compatible with HART revisions 5, 6, and 7, and can support one HART device per channel.
It does not support burst mode, PSK, or multi-drop configurations, but it will detect and disable bursting devices automatically.
The suffix "K" denotes conformal coating, which protects the module's internal circuitry from moisture, dust, and corrosive chemicals, making it appropriate for severe settings such as offshore platforms, chemical plants, and food processing facilities.
Advanced features include:
Open-circuit detection: Provides a negative full-scale value within 5 seconds (4-20 mA) or 0 mA (0-20 mA).
Digital filtering: Each channel has its own ADC and digital filter for noise reduction and rejection of 50/60 Hz interference.
Real-time sampling: Configurable scan intervals allow for timely data updates to the backplane.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Input Configuration:
Channels: 8 isolated differential current inputs.
Input ranges:
0–20 mA.
4–20 mA (preferred for HART communication).
Resolution: 16 to 21 bits depending on configuration.
Input impedance: High, suitable for precision current loop measurements.
Isolation: Channel-to-channel isolation for enhanced noise immunity and safety.
Conformal coating: Yes (denoted by “K”) – protects against moisture, dust, and corrosion.
HART Communication:
Protocol support: HART 5, 6, and 7.
Modem: 1 dedicated HART modem per channel.
Supported configurations:
Analog only.
Analog + HART PV.
Analog + full HART data per channel.
Limitations:
No support for burst mode, PSK, or multi-drop networks.
Automatically disables burst devices upon detection.
Diagnostics & Filtering:
Open-circuit detection:
Reports negative full-scale value within 5 seconds (4–20 mA range).
Reports 0 mA in 0–20 mA range.
Over/under-range detection: Yes.
Filters:
ADC filter for 50/60 Hz rejection.
Per-channel digital filters to reduce noise transients.
Sampling: Real-time sampling with configurable scan intervals (RTS).
Data broadcast: After sampling, data is sent to the local chassis backplane.
Mechanical & Environmental:
Terminal block options:
1756-TBCH.
1756-TBS6H.
Mounting: Standard ControlLogix chassis slot.
Operating temperature: –20°C to +60°C.
Humidity: 5% to 95% non-condensing.
Certifications: UL, CE, CSA; suitable for Class I, Div 2 hazardous locations.
