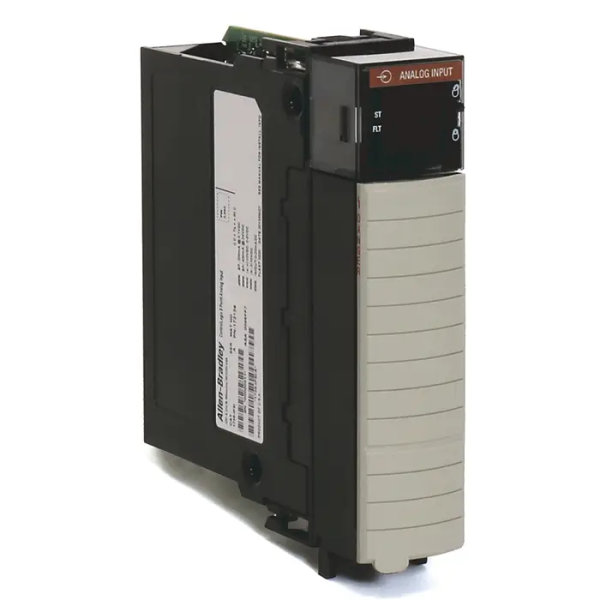

ControlLogix 8 Point A/I Module
SKU: 1756-IF8K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IF8K is a conformally coated 8-channel analogue input module for the ControlLogix-XT platform, which runs in harsh industrial settings.
It allows for versatile analogue signal acquisition from field devices like as sensors and transmitters, with voltage and current inputs available in single-ended or differential formats.
With 16-bit resolution, adjustable scaling, and built-in diagnostics, the module offers precise and dependable data collecting.
The conformal coating provides protection against moisture, dust, and corrosive chemicals, making it excellent for use in hard or outdoor environments where ordinary modules may fail.
The 1756-IF8K works flawlessly with ControlLogix systems and offers hot-swapping, allowing maintenance to be performed without shutting down the entire system.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Input:
Channels: 8 analogue inputs.
Input Types: Single-ended or differential.
Input Ranges:
±10V.
0–10V.
0–5V.
0–20 mA.
Resolution: 16-bit.
Accuracy: ±0.1% of full scale.
Conversion Time: ~1 ms per channel.
Update Rate: Configurable per channel.
Environmental & Coating:
Conformal Coating: Yes (XT-rated for harsh environments).
Operating Temp: –25°C to +70°C.
Storage Temp: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock: 30g.
Vibration: 10–500 Hz, 5g.
Integration & Installation:
Platform: ControlLogix chassis.
Terminal Block: Requires 36-pin RTB (Removable Terminal Block).
Hot-Swappable: Yes.
Certifications: UL, CE, CSA.
