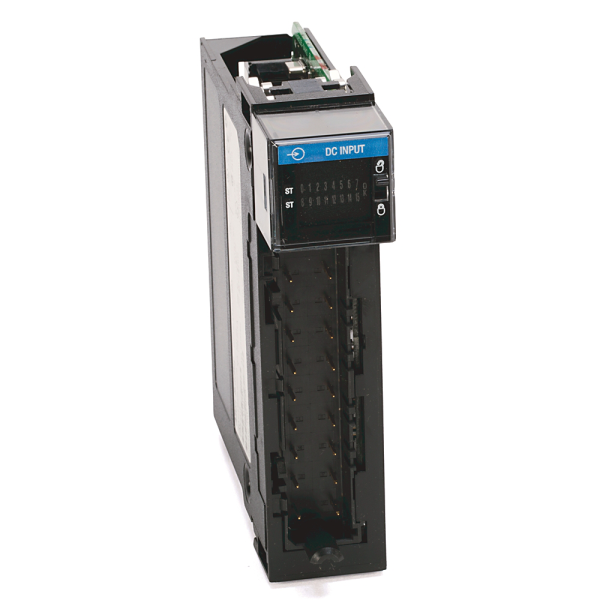

ControlLogix 16 Pt 5VDC D/I Module

Description: A digital input module from the ControlLogix series, the 1756-IG16 is designed to manage 16 low-true TTL inputs at 5V DC. It works well with fast-switching devices like encoders, sensors, and other low-voltage digital components in automation systems. Each input is divided into two sets of eight points, and the module employs inverted TTL logic, which interprets a low voltage (0.2-0.8 VDC) as ON and a high value (2.0-5.5 VDC) as OFF. This logic can be reversed in your control program using a NOT command if necessary. The module includes user-configurable input filters and change-of-state detection, allowing you to fine-tune responsiveness while reducing noise. It connects to the ControlLogix chassis using a removable terminal block (RTB) like the 1756-TBNH or 1756-TBSH, which must be ordered separately. With fast response times and low power dissipation, the 1756-IG16 is a dependable solution for high-speed digital input applications that need precision and timing.
