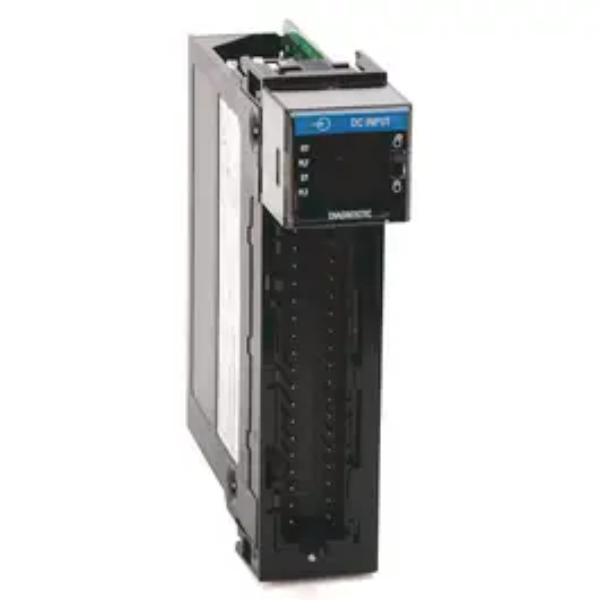

ControlLogix 16 Pt 5VDC D/I Module
SKU: 1756-IG16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IG16K is a digital input module kit for the ControlLogix platform that detects ON/OFF signals from field devices with 5V DC logic levels.
This kit includes the 1756-IG16 input module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adapter, making it suitable for use in systems that require low-voltage digital input monitoring.
Each of the 16 input channels is independently isolated, ensuring high noise immunity and safe interfacing with TTL-level devices, sensors, and logic circuits.
It is best suited for high-speed digital applications in electronics production, test systems, and embedded control settings.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 4.5–5.5V DC.
Nominal Voltage: 5V DC.
Number of Inputs: 16 individually isolated channels.
Input Current: ~3 mA @ 5V DC.
Input Delay (Debounce):
ON: 0.5 ms.
OFF: 0.5 ms.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Mechanical:
Kit Includes:
1756-IG16 module.
1756-CPR2 cable.
1756-PSCA2 adapter.
Mounting: External to chassis via adapter.
Status Indicators: One LED per input channel.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Hot-Swappable: Yes (with RTB).
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
