ControlLogix 16 Point D/I Module
SKU: 1756-IM16I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

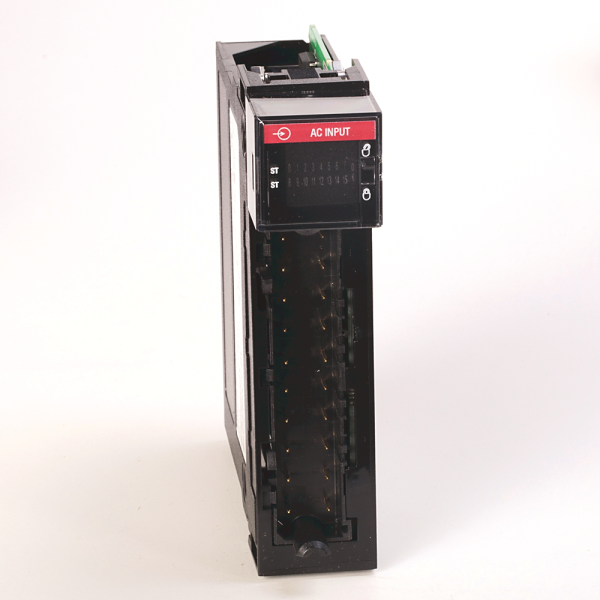

The 1756-IM16I is a ControlLogix AC digital input module with 16 isolated input channels.
This per-point isolation enables each input to function independently, making it excellent for systems with varied voltage sources or where electrical noise is an issue.
It accepts AC voltage inputs ranging from 159 to 265 V AC, with a frequency of 47-63 Hz, and is designed to operate at 240 V AC nominal.
The module is compatible with ControlLogix chassis and requires a 1756-TBS6H or 1756-TBCH detachable terminal block to connect.
The module has adjustable input filter times and change-of-state detection, allowing users to fine-tune responsiveness and debounce behaviour.
It also includes status LEDs for each channel, which provide real-time visual feedback on input conditions.
The 1756-IM16I is designed for dependability, is certified for Class I, Division 2 hazardous sites, and provides thermal dissipation of up to 19.78 BTU/hr at 60°C.
It's ideal for industrial use, such as factory automation, process control, and power distribution monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input type: AC digital input.
Number of inputs: 16 individually isolated channels.
Nominal voltage: 120V AC.
Operating voltage range: 74–132V AC.
Frequency range: 47–63 Hz.
Input current: ~7.5 mA @ 120V AC.
Input impedance: ~16 kΩ.
Isolation: Channel-to-channel isolation for noise immunity and mixed-voltage flexibility.
Functional Features:
Input filter times: Configurable to debounce signals.
Change-of-state detection: Supported.
Status indicators: Individual LED indicators per channel.
Diagnostics: Basic input diagnostics available.
Mechanical & Environmental:
Backplane current draw:
120 mA @ 5.1V DC.
100 mA @ 24V DC.
Power dissipation: ~3.5 W.
Thermal dissipation: ~11.9 BTU/hr.
Operating temperature: –20°C to +60°C.
Storage temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Mounting: Standard ControlLogix chassis slot.
Terminal block options: 1756-TBCH or 1756-TBS6H.
Certifications:
UL Listed: Industrial Control Equipment.
CSA Certified: Process Control Equipment.
Hazardous location rating: Class I, Division 2 Groups A, B, C, D.
CE Marked: Yes.
