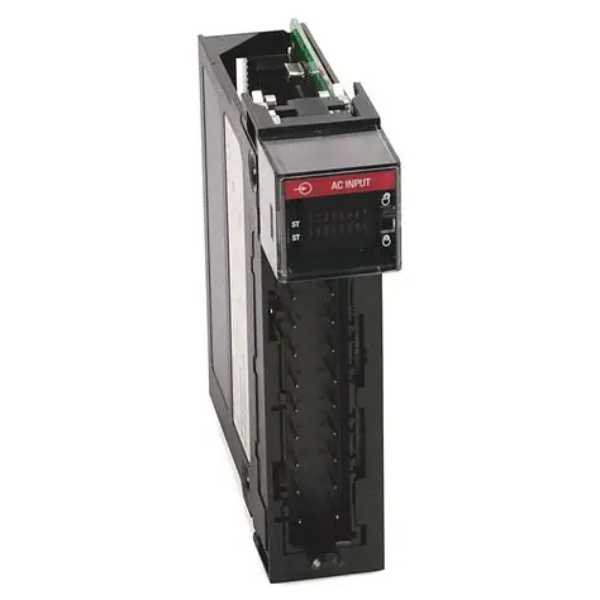

ControlLogix 16 Pt D/I 24V AC Module
SKU: 1756-IN16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IN16 is a 16-point digital input module for the ControlLogix platform that monitors the ON/OFF status of field devices running on 24V AC.
It is perfect for connecting to AC-powered sensors, switches, and other discrete devices in industrial automation systems.
Each input channel is independently separated, ensuring high noise immunity and safe operation in electrically loud situations or systems with mixed voltage levels.
The module includes LED indications for each channel, allowing for rapid diagnosis and status monitoring.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Voltage Range: 10–30V AC.
Nominal Voltage: 24V AC.
Frequency Range: 47–63 Hz.
Number of Inputs: 16 individually isolated channels.
Input Current: ~7 mA @ 24V AC.
Input Delay (Debounce):
ON: 20 ms.
OFF: 20 ms.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per input channel.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
