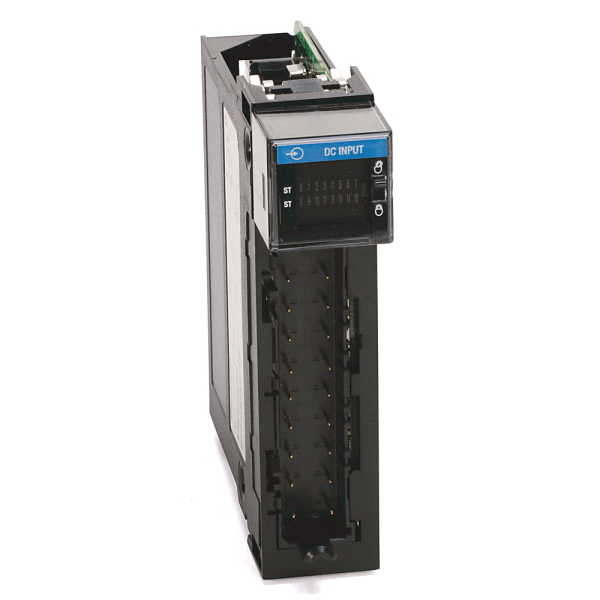

ControlLogix 16 Pt 12/24V DC D/I Module
SKU: 1756-IV16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A common digital input module for the ControlLogix platform, the 1756-IV16 has 16 source-type input channels that are intended to track 12/24V DC signals coming from field devices including relays, switches, and sensors.
Unlike sink-type modules, this one is designed for applications where the field device feeds current into the input.
Each channel has rapid reaction times and unique LED indicators for real-time condition monitoring.
The module works flawlessly with Studio 5000 software for configuration and diagnostics, and it allows hot swapping, allowing maintenance without system interruption.
The 1756-IV16 provides dependable DC signal acquisition with simple integration and strong performance, making it perfect for general-purpose industrial automation.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 16 digital inputs (grouped in 2 sets of 8).
Voltage Range: 10–30V DC.
Input Type: Source (field device provides current to the module).
Nominal Input Voltage: 24V DC.
Input Impedance: 3.2 kΩ @ 30V DC.
Power Dissipation: 5.1 W max @ 60°C.
Thermal Dissipation: 18.47 BTU/hr.
Backplane Power: 0.61 W.
Inrush Current: 250 mA max.
Input Performance:
Off-to-On Delay:
Hardware: 280 µs (nominal), 1 ms (max).
Filter options: 0 ms, 1 ms, 2 ms.
On-to-Off Delay:
Hardware: 540 µs (nominal), 2 ms (max).
Filter options: 1 ms, 2 ms, 9 ms, 18 ms.
On-State Current Range:
Min: 2 mA @ 10V DC.
Max: 10 mA @ 30V DC.
Off-State Leakage:
Max Voltage: 5V DC.
Max Current: 1.5 mA.
Physical & Environmental:
Terminal Block Compatibility:
1756-TBNH or 1756-TBSH RTB required.
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Isolation Voltage: 250V continuous.
Hot-Swappable: Yes.
