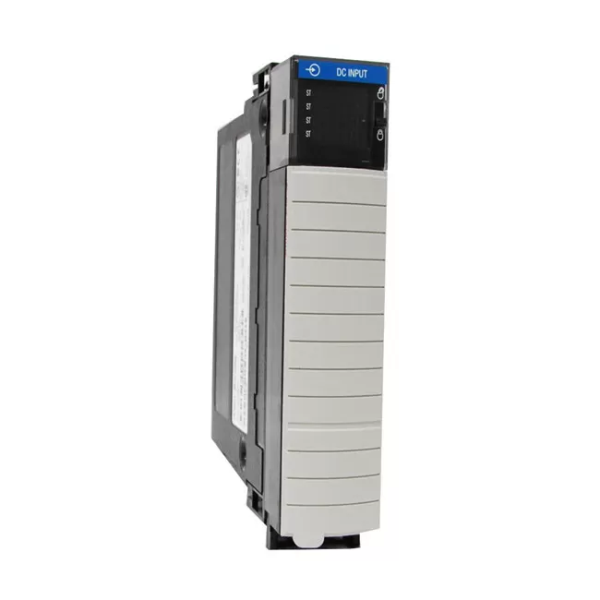

ControlLogix 32 Pt 12/24VDC D/I Module
SKU: 1756-IV32
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-IV32 is a high-density digital input module for the ControlLogix platform, with 32 sink-type input channels that monitor 12/24V DC signals from field devices such sensors, switches, and relays.
It's suited for applications that require discrete automation systems to monitor inputs compactly and consistently.
Each channel has fast response times and unique LED indicators for easy status checking.
The module allows hot-swapping, allowing maintenance without system downtime, and it works flawlessly with Studio 5000 software for configuration and diagnostics.
The 1756-IV32 is ideal for machine control, packaging lines, and other industrial situations requiring efficient DC signal acquisition due to its space-saving design and durable performance.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 32 digital inputs.
Input Voltage Range: 10–30V DC (nominal 12/24V DC).
Input Type: Sink (current flows into the module).
Input Current: 6 mA @ 24V DC.
Input Delay:
On: 0.5 ms.
Off: 0.5 ms.
Input Filtering Options: Configurable via software (0, 1, 2, 9, or 18 ms).
Module Integration:
Hot-Swappable: Yes.
Status Indicators: Individual channel LEDs.
Terminal Block: Requires 36-pin RTB (Removable Terminal Block).
Backplane Current Draw:
120 mA @ 5.1V DC.
100 mA @ 24V DC.
Power Dissipation: 3.5 W.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
