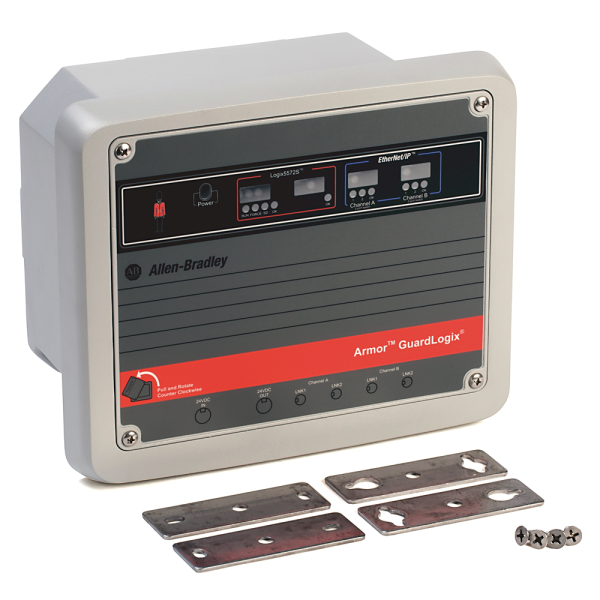

ArmorGuardLogix On Machine Safety CTRL
SKU: 1756-L73EROMS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ArmorGuardLogix family of on-machine safety controllers includes the robust, high-performing 1756-L73EROMS, which is intended for decentralized control in demanding industrial settings.
Its IP67-rated shell eliminates the need for a control cabinet, allowing for direct installation on machinery.
This controller combines standard and safety control in a single device, meeting SIL 3 and PLe safety regulations.
It has two EtherNet/IP ports for fast communication and redundancy, as well as distributed I/O and motion control via EtherNet/IP.
The 1756-L73EROMS, which has 8 MB of regular memory and 4 MB of safety memory, is excellent for applications that require rigorous safety logic, real-time performance, and simplified system architecture, such as packaging, automotive, and food and beverage industries.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical & Physical:
Form Factor: On-machine, IP67-rated enclosure (no cabinet required).
Dimensions: 9.4 x 11.5 x 6.5 inches.
Weight: Approx. 15.7 lb (7.1 kg).
Mounting: Direct machine installation.
Enclosure Rating: IP67, UL Type 4/4X (dust and water resistant).
Memory & Processing:
Standard Memory: 8 MB.
Safety Memory: 4 MB.
I/O Memory: 0.98 MB.
SD Card: 1 GB pre-installed (expandable to 2 GB).
Communication & Connectivity:
EtherNet/IP Ports: 4 × M12 Class 5E ports.
DLR Support: Device-Level Ring for network redundancy.
USB Port: 1 × USB 1.1 (12 Mbps).
Connections:
256 EtherNet/IP connections.
128 TCP connections.
Safety & Control:
Safety Ratings:
SIL 3 (IEC 61508).
PLe, Category 4 (ISO 13849-1).
Integrated Safety Logic: Supports GuardLogix safety instructions.
Supported I/O:
Up to 128,000 digital I/O points.
Up to 4,000 analogue I/O points.
Electrical:
Nominal Input Voltage: 24V DC.
Power Distribution: Can power other Armor On-Machine devices.
