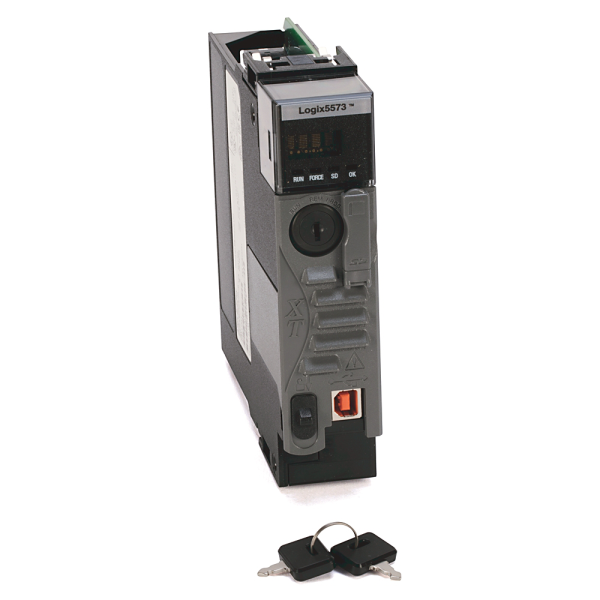

ControlLogix 8MB Controller L7XT
SKU: 1756-L73XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-L73XT is a rugged, high-performance controller from the ControlLogix 5570 XT series, intended for use in harsh industrial situations.
It has 8 MB of user memory and enables advanced control techniques for discrete, process, motion, and drive applications.
The "XT" designation indicates that this controller is designed for extended temperature ranges and features conformal coating, which provides better protection against moisture, dust, and corrosive chemicals.
This makes it suitable for severe conditions such as outdoor installations, chemical facilities, and high-humidity areas.
It works flawlessly with Studio 5000 Logix Designer software and supports a variety of communication protocols, including EtherNet/IP, ControlNet, and DeviceNet.
The controller requires an energy storage module (1756-ESMCAP or 1756-ESMNSE) and accepts removable SD cards for program and data storage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
User Memory: 8 MB.
Controller Series: ControlLogix 5570 XT (L7XT).
Extended Temperature Range: Yes.
Conformal Coating: Yes.
Slot Requirement: 1 slot in a 1756 chassis.
Energy Storage Module Required:
1756-ESMCAP (retentive).
1756-ESMNSE (non-retentive).
SD Card Support: Yes — 1 GB standard, user-replaceable.
Communication Options: EtherNet/IP, ControlNet, DeviceNet, serial.
Motion Support: Integrated motion over EtherNet/IP.
Programming Software: Studio 5000 Logix Designer.
Backplane Current Draw:
1.2 A @ 5.1 VDC.
3 mA @ 24 VDC.
Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
