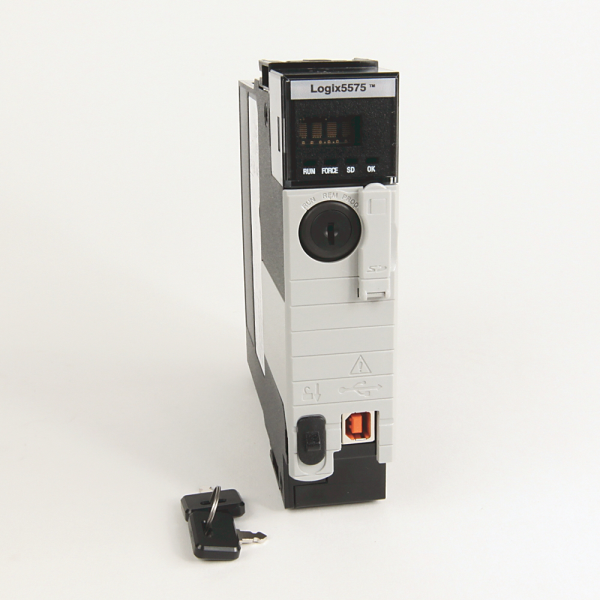

ControlLogix 32 MB Controller
SKU: 1756-L75K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-L75K is a high-capacity, high-performance controller from the ControlLogix 5570 family, specifically built for large and complicated automation systems.
It has 32 MB of user memory, making it suitable for data-intensive applications including batch processing, high-speed sorting, and large-scale motion control.
The "K" suffix denotes that the controller has conformal coating, which protects internal circuitry from moisture, dust, and corrosive pollutants, making it ideal for tough industrial applications such as chemical plants, mining operations, and outdoor installations.
This controller works smoothly with Studio 5000 Logix Designer software and supports a variety of communication protocols, including EtherNet/IP, ControlNet, and DeviceNet.
It requires an energy storage module (either 1756-ESMCAP or 1756-ESMNSE) and accepts removable SD cards for program and data storage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
User Memory: 32 MB.
Controller Series: ControlLogix 5570 (L7X).
Conformal Coating: Yes (“K” variant).
Slot Requirement: Occupies 1 slot in a 1756 chassis.
Energy Storage Module Required:
1756-ESMCAP (retentive).
1756-ESMNSE (non-retentive).
SD Card Support: Yes — 1 GB standard, user-replaceable.
Communication Options: EtherNet/IP, ControlNet, DeviceNet, serial.
Motion Support: Integrated motion over EtherNet/IP.
Safety Support: Not safety-rated (use L7xS models for SIL-rated applications).
Programming Software: Studio 5000 Logix Designer.
Backplane Current Draw:
1.2 A @ 5.1 VDC.
3 mA @ 24 VDC.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
