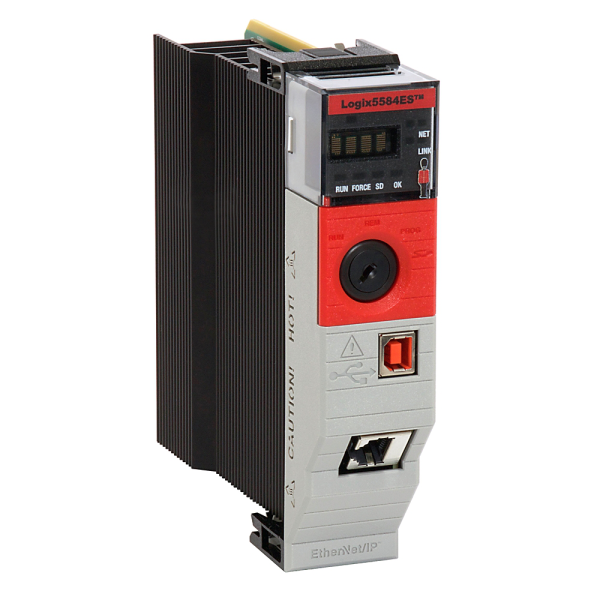

GuardLogix 5580 Controller
SKU: 1756-L84ES
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-L84ES is a high-performance GuardLogix 5580 safety controller that offers both normal and safety control on a single platform.
Designed for demanding industrial applications, it provides remarkable speed, memory capacity, and dependability, making it ideal for systems that require certified functional safety as well as complicated automation.
With 20 MB of regular memory and 5 MB of safety memory, this controller is suitable for large-scale projects including motion control, high-speed I/O, and dispersed networks.
It has embedded Gigabit Ethernet, Device-Level Ring support for network resiliency, and is programmed with Studio 5000 Logix Designer, which allows for the development of both safety and standard logic.
To provide safety redundancy, combine the 1756-L84ES with a 1756-L8SP Safety Partner module, which ensures synchronized execution of safety tasks in accordance with SIL 3 / PLe standards.
Buy currently uses Select Automation shop pricing and checkout.
Memory & Processing:
Standard Memory: 20 MB.
Safety Memory: 6 MB.
I/O Memory: 0.98 MB.
SD Card: 1 GB pre-installed (expandable to 2 GB).
Display: 4-character alphanumeric LED.
Communication & Connectivity:
EtherNet/IP Ports: 1 × embedded Gigabit Ethernet port.
DLR Support: Yes (Device-Level Ring for network redundancy).
USB Port: 1 × USB 2.0 (Type B).
EtherNet/IP Devices Supported: Up to 250.
Network Connections:
256 EtherNet/IP connections.
128 TCP connections.
Safety & Control:
Safety Ratings:
SIL 3 (IEC 61508).
PLe, Category 4 (ISO 13849-1).
Integrated Safety Logic: Supports GuardLogix safety instructions.
Safety Partner Required: Must be paired with 1756-L8SP for safety redundancy.
Supported I/O:
Up to 128,000 digital I/O points.
Up to 4,000 analogue I/O points.
Physical & Environmental:
Form Factor: Standard ControlLogix chassis module.
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
