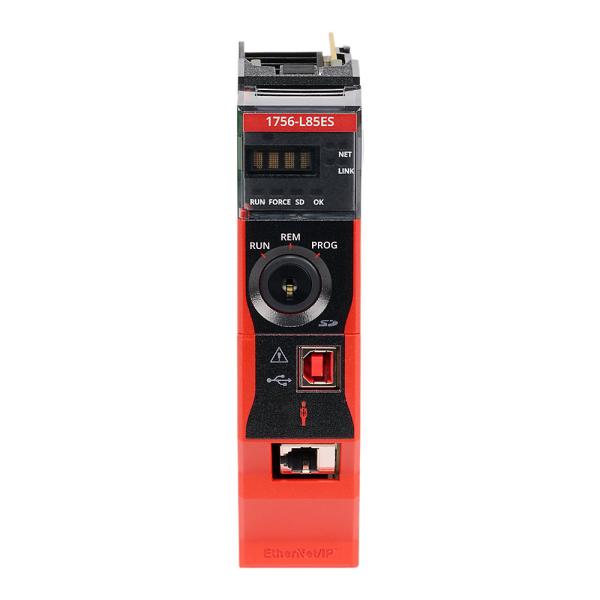

Guardlogix 5580 Controller
SKU: 1756-L85ES
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-L85ES is a top-tier GuardLogix 5580 safety controller for the ControlLogix platform that combines standard and safety control into a single high-performance unit.
It supports applications with Safety Integrity Level (SIL) 3 and Performance Level (PL) e, making it suited for industries such as automotive, food and beverage, and heavy manufacturing.
This controller has 40 MB of user memory, with 10 MB dedicated to safety functions, and provides ultra-fast processing for complicated automation systems.
It has embedded EtherNet/IP, supports CIP Security, and is XT-rated with conformal coating for extreme applications.
With built-in diagnostics, time synchronization, and support for up to 300 EtherNet/IP nodes, the 1756-L85ES provides dependable, secure, and scalable control for both routine and safety-critical tasks.
Buy currently uses Select Automation shop pricing and checkout.
Core Features:
Combines standard and safety control in one controller.
40 MB total user memory (includes 10 MB dedicated safety memory).
Certified for SIL 3 / PL e safety applications (TÜV approved).
High-speed processor for fast scan times and large-scale control.
Embedded EtherNet/IP port + support for up to 300 EtherNet/IP nodes.
USB port for programming and diagnostics.
Supports up to 128,000 digital I/O points.
Compatible with ControlLogix chassis and redundancy systems.
CIP Security enabled for secure communication.
XT-rated with conformal coating for harsh environments.
Supports extended diagnostics and time-stamped event logging.
IEEE 1588-time synchronization support.
Environmental Ratings:
Operating Temperature: –25°C to +70°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
