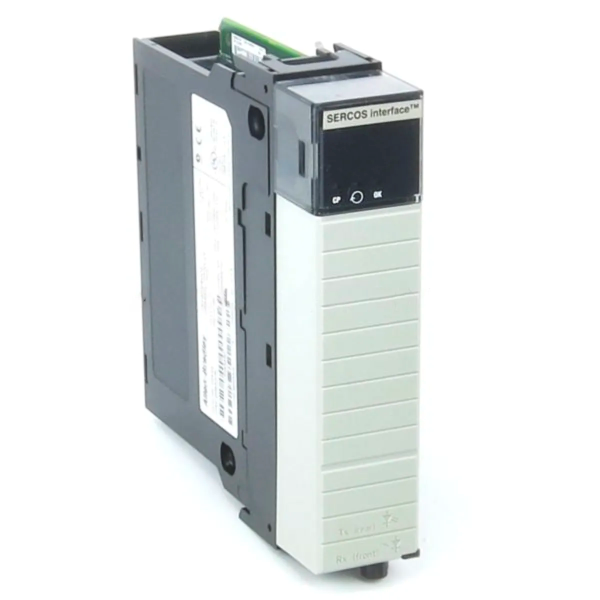

ControlLogix 8 Axis SERCOS Servo Module
SKU: 1756-M08SE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-M08SE is a high-performance SERCOS interface motion control module designed for ControlLogix applications.
It uses the SERCOS (Serial Real-time Communication System) protocol to allow synchronized servo movements across up to 8 axes.
This module offers accurate, synchronized control of servo drives, making it perfect for use in packaging, robotics, material handling, and high-speed assembly.
It works seamlessly with Kinetix 6000 and other SERCOS-compatible drives and is programmed in Studio 5000 Logix Designer, providing for unified control of motion, logic, and safety.
Buy currently uses Select Automation shop pricing and checkout.
Motion Control:
Number of Axes: Up to 8 coordinated servo axes.
Protocol: SERCOS (IEC 61491).
Supported Drives: Kinetix 6000, Kinetix 6200, Kinetix 6500 (SERCOS interface).
Motion Types: Coordinated, interpolated, point-to-point, gearing, camming.
Communication & Interface:
Fiber Optic Ports: 2 SERCOS ports (Transmit and Receive).
Communication Rate: 4, 8, or 16 Mbps selectable.
Synchronization: Real-time deterministic communication for precise motion control.
Chassis & Power:
Chassis Compatibility: Fits any ControlLogix chassis.
Slot Requirement: Occupies 1 slot.
Backplane Current Draw:
1.2 A @ 5.1 VDC.
3 mA @ 24 VDC.
Environmental Ratings:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
