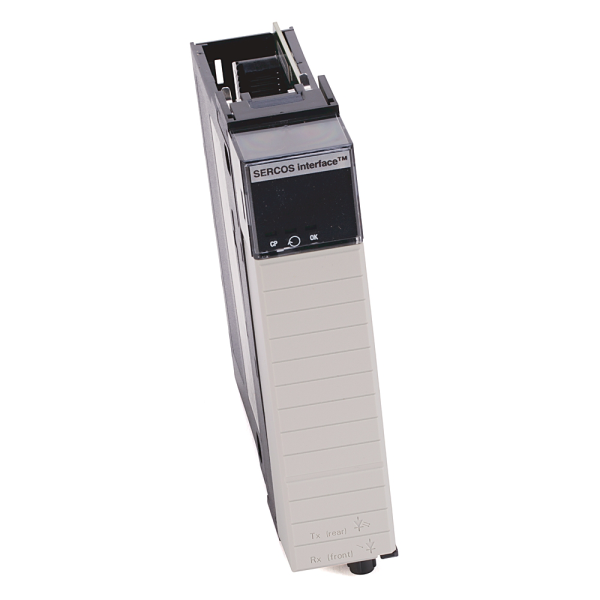

ControlLogix 8 Axis SERCOS Servo Module
SKU: 1756-M08SEK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-M08SEK is a conformally coated motion control module that allows for precise, synchronized control of up to eight servo axes via the SERCOS (Serial Real-time Communication System) protocol.
It is designed for applications that require high-speed, real-time communication between the controller and servo drives and is a component of the ControlLogix platform.
This module is perfect for complicated automation systems including robotics, CNC machinery, and high-speed packing lines that require multi-axis coordination.
The conformal coating provides further protection against moisture, dust, and corrosive substances, making it ideal for severe industrial applications.
It works flawlessly with Kinetix 6000, Kinetix 7000, and Ultra3000 drives and can perform advanced motion operations such as electronic gearing, camming, and position/velocity/torque control.
Communication speeds can reach up to 8 Mbps, with cycle times as quick as 0.5 ms, depending on the number of linked drives
Buy currently uses Select Automation shop pricing and checkout.
Motion Control:
Controls up to 8 independent servo axes.
Compatible with:
Kinetix 2000 (2093 series).
Kinetix 6000 (2094 series).
Kinetix 7000 (2099 series).
Ultra3000 (2098 series).
Supports advanced motion functions:
Electronic gearing.
Cam profiling.
Position, velocity, and torque control.
SERCOS Communication:
Interface: Fiber-optic SERCOS ring.
Data rates:
4 Mbps:
0.5 ms cycle time (up to 2 drives).
1 ms (up to 4 drives).
2 ms (up to 8 drives).
8 Mbps:
0.5 ms (up to 4 drives).
1 ms (up to 8 drives).
2 ms (up to 16 drives).
Environmental & Mechanical:
Conformal coating: Protects against moisture, dust, and corrosive agents.
Operating temperature: –20°C to 60°C.
Mounting: Standard ControlLogix chassis slot.
Real-time diagnostics: Monitors servo faults including:
Overcurrent.
Overvoltage.
Out-of-tolerance alarms.
Programming & Integration:
Programmed using Studio 5000 Logix Designer.
Supports motion instructions:
MoveAbsolute.
Gear.
Cam.
Home.
Seamless integration with other ControlLogix modules for unified control.
