      ControlLogix 16 Axis SERCOS Servo Module

      SKU: 1756-M16SEK

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 1756-M16SEK is a conformally coated motion module that allows for precise, high-speed control of up to 16 servo axes via the SERCOS (Serial Real-time Communication System) protocol. It serves as a real-time communication bridge between the ControlLogix controller and intelligent servo drives, employing fiber-optic cabling to ensure noise-free data flow. This module supports 4 Mbps and 8 Mbps SERCOS data speeds, allowing for variable cycle times based on the number of attached drives. It is compatible with Rockwell's Kinetix 6000, Kinetix 7000, and Ultra3000 drives, and it works smoothly with Studio 5000 / RSLogix 5000 for programming and diagnostics. The conformal coating increases endurance, making it appropriate for hostile situations like moisture, dust, or corrosive substances. It provides motion control modes such as position, velocity, and torque, making it perfect for use in robotics, packaging, material handling, and CNC systems.

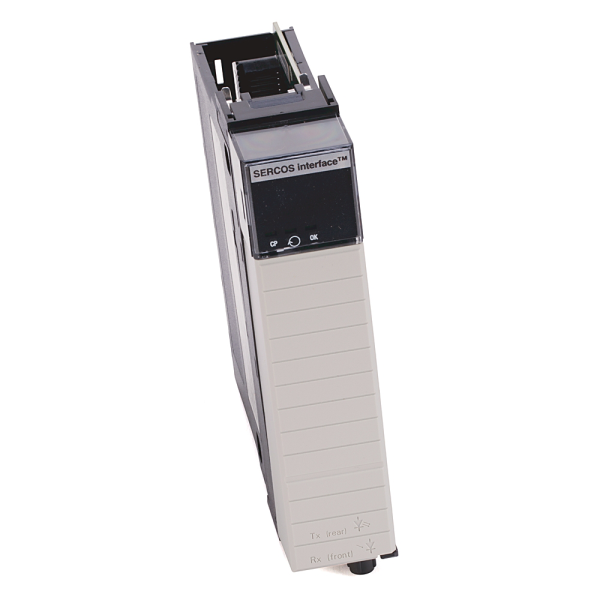

      1756-M16SEK
      Alternative image 1
      Motion Control: Axes supported: Up to 16 independent servo axes. Control modes: Position. Velocity. Torque. Compatible drives: Kinetix 6000. Kinetix 7000. Ultra3000. Motion instructions: Fully compatible with RSLogix 5000 / Studio 5000 motion set. SERCOS Communication: Interface type: Fiber-optic SERCOS ring. Data rates: 4 Mbps: 1 ms cycle time (up to 4 drives). 2 ms (up to 8 drives). 8 Mbps: 0.5 ms (up to 4 drives). 1 ms (up to 8 drives). 2 ms (up to 16 drives). Noise immunity: High, due to fiber-optic transmission. Environmental & Electrical: Conformal coating: Yes – protects against moisture, dust, and corrosive agents. Current draw: 760 mA @ 5V DC. 2.4 mA @ 24V DC. Mounting: Fits into any slot of a ControlLogix chassis. Operating temperature: –20°C to 60°C. Storage temperature: –40°C to 85°C. Humidity: 5% to 95% non-condensing. Integration & Programming: Programmed via Studio 5000 Logix Designer. Supports advanced motion functions: Electronic gearing. Cam profiling. Coordinated multi-axis control. Seamless integration with ControlLogix controllers and I/O modules.
