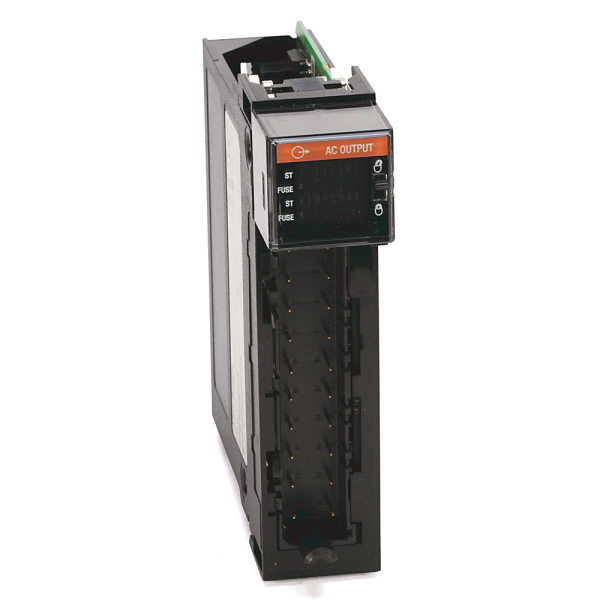

ControlLogix 16 Point D/O Module

Description: The 1756-OA16 is a ControlLogix digital output module with 16 AC output channels, each of which can switch devices like solenoids, relays, contactors, and indicator lights. It runs in the voltage range of 74 to 265V AC, making it compatible with both 120V and 240V AC systems. Each output point can provide up to 0.5 A, for a total module output capability of 4 A at 60°C. The module has pilot duty rates, which allow it to safely activate inductive loads such as valves and magnetic actuators. It is advised to utilize interposing relays to safeguard the module at larger inrush currents. The 1756-OA16 accepts two removable terminal blocks—the 1756-TBNH or 1756-TBSH—that serve as the wiring interface for field connections. It has unique LED indicators for each channel, which provide real-time status updates throughout operation. This module can be put in any slot of a ControlLogix chassis, whether local or remote, and it works with all ControlLogix processors and communication modules, including GuardLogix systems. It's an excellent solution for applications requiring dependable AC output switching in settings ranging from factory automation to process control.
