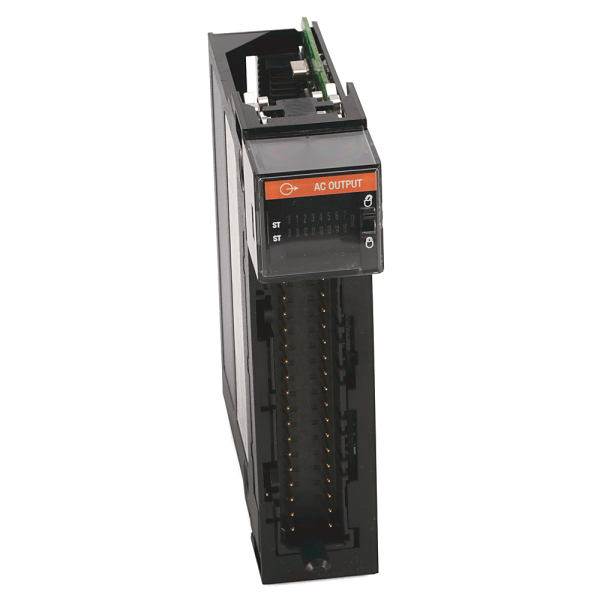

ControlLogix 16 Point Digital Output
SKU: 1756-OA16IK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OA16IK is a high-performance AC digital output module from the ControlLogix family with 16 individually separated channels.
Each channel may switch loads separately, making it excellent for systems requiring electrical isolation between devices, such as mixed-voltage circuits or safety-critical outputs.
It has a voltage range of 74 to 265V AC and supports both 120V and 240V AC applications.
Each output may provide up to 2 A at 30°C or 1 A at 60°C, for a total module capacity of 5 A at 30°C and 4 A at 60°C.
This makes it ideal for controlling solenoids, relays, contactors, and pilot lights in harsh industrial situations.
The module has a conformal coating that protects against moisture, dust, and corrosive agents—ideal for severe environments.
It is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks and fits effortlessly into any ControlLogix chassis.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output type: AC digital output.
Number of outputs: 16 points (individually isolated).
Operating voltage range: 74–265V AC.
Nominal voltage: 120/240V AC.
Current per output:
Up to 2 A @ 30°C.
Up to 1 A @ 60°C.
Total module current:
5 A @ 30°C.
4 A @ 60°C.
Power dissipation: Max 5.5 W @ 60°C.
Isolation voltage: 50V continuous between outputs.
Mechanical & Environmental:
Backplane current draw:
300 mA @ 5V DC.
3 mA @ 24V DC.
Terminal block compatibility:
1756-TBCH.
1756-TBS6H.
Conformal coating: Yes – protects against moisture, dust, and corrosive agents.
Operating temperature: –20°C to 60°C.
Enclosure: None (requires installation in ControlLogix chassis).
Functional Highlights:
Individually isolated outputs: Ideal for mixed-voltage or safety-critical applications.
Pilot duty rated: Suitable for inductive loads like solenoids and contactors.
Status indicators: LED indicators for each output channel.
Installation: Can be inserted into any slot of a ControlLogix chassis.
