ControlLogix 16 Point Digital Output
SKU: 1756-OA16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

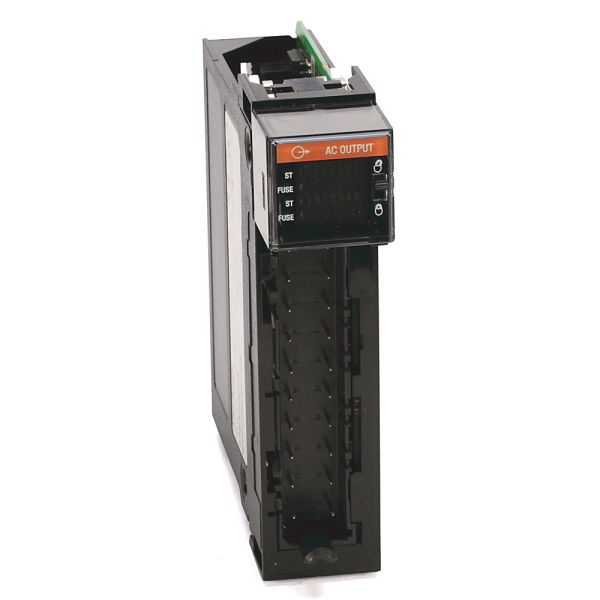

The ControlLogix 1756-OA16K is a conformally coated AC digital output module with 16 output channels for switching relays, solenoids, contactors, and indicator lights.
It runs across a wide voltage range of 74-265V AC, making it appropriate for both 120V and 240V systems.
This module is distinguished by its conformal coating, which protects internal circuitry from moisture, dust, and corrosive substances, making it excellent for use in tough industrial environments.
It fits easily into the ControlLogix chassis and communicates at high speeds with other PLC components, allowing for real-time control and monitoring.
The module is designed for long-term reliability, has strong electrical isolation, and is compatible with a variety of terminal blocks and communication networks.
It's commonly utilized in factory automation, process control, and material handling systems where dependable AC switching is needed.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output type: AC digital output.
Number of outputs: 16 points.
Voltage range: 74–265V AC.
Nominal voltage: 120/240V AC.
Current per output: Up to 0.5 A.
Total module current: 4 A max at 60°C.
Pilot duty rating: Yes – suitable for inductive loads like solenoids and contactors.
Power dissipation: Typically low; varies with load.
Backplane current draw: 250 mA @ 5V DC.
Mechanical & Environmental:
Conformal coating: Yes – protects against moisture, dust, and corrosive agents.
Mounting: Fits into any slot of a ControlLogix chassis.
Status indicators: Individual LEDs for each output channel.
Terminal block compatibility:
1756-TBNH (non-removable).
1756-TBSH (removable).
Operating temperature: 0°C to 60°C (32°F to 140°F).
Storage temperature: –40°C to 85°C.
Humidity: 5% to 95% non-condensing.
Functional Highlights:
Isolation: Group-to-group and outputs-to-backplane isolation.
Installation: Can be inserted or removed with or without system power.
Integration: Works with ControlLogix processors and Studio 5000 software.
