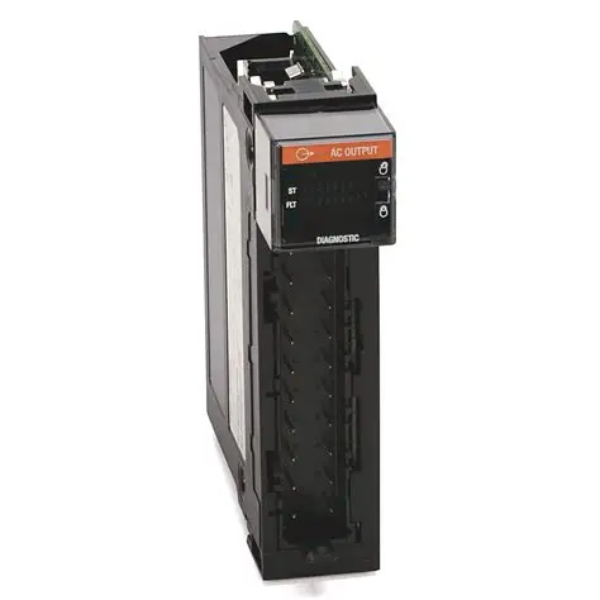

ControlLogix 8 Point D/O Module
SKU: 1756-OA8D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OA8D is an 8-point digital output module for the ControlLogix platform that is intended to control field devices operating at 120V AC.
It has diagnostic tools that enable users to monitor output status, identify errors, and increase system reliability.
Each output channel is separately isolated, ensuring reliable protection against electrical noise and cross-channel interference.
The module is perfect for controlling solenoids, relays, contactors, and other AC-powered actuators in industrial automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Output Voltage Range: 74–132V AC.
Nominal Voltage: 120V AC.
Number of Outputs: 8 individually isolated channels.
Output Type: Triac (AC switching).
Output Current:
1.0 A max per channel.
8.0 A max per module.
Leakage Current: <2 mA.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Diagnostics:
Open load detection.
Short circuit detection.
Output state monitoring.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
