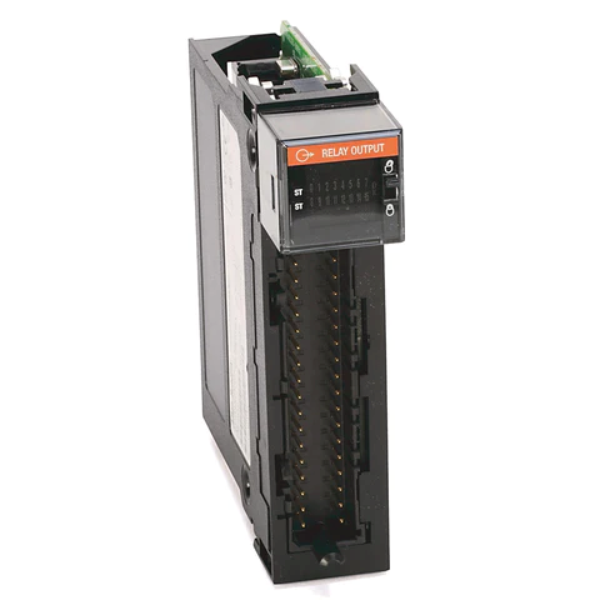

ControlLogix 8 Point D/O Module
SKU: 1756-OA8E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OA8E is a small, high-reliability AC output module for the ControlLogix platform that includes eight electronically fused output channels.
Each channel provides 120V AC nominal output throughout a voltage range of 74-132V AC, making it excellent for switching devices such as relays, solenoids, and motor starters in industrial automation systems.
The module is divided into two output groups with four channels each, providing for flexible load distribution and isolation.
Its electronic fusing protects against overloads and automatically resets, eliminating the need for manual fuse replacement and minimizing downtime.
With LED indicators for each channel, hot-swappable capability, and easy integration into any ControlLogix chassis, the 1756-OA8E is designed for high-performance, safety, and ease of maintenance in demanding situations.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Number of Outputs: 8 AC output channels.
Voltage Range: 74–132V AC, 47–63 Hz.
Nominal Voltage: 120V AC.
Current Ratings:
2 A per channel @ 60°C.
4 A per group @ 30°C (derated to 2 A @ 60°C).
8 A total per module @ 30°C (derated to 4 A @ 60°C).
Response Time:
ON: 9.3 ms @ 60 Hz.
OFF: 11 ms @ 50 Hz.
Protection: Electronic fusing (auto-reset after overload).
Backplane Power Consumption:
200 mA @ 5.1 VDC.
250 mA @ 24 VDC.
Total: 7.02 Watts.
Thermal Dissipation: 18.76 BTU/hr.
Environmental Ratings:
Operating Temperature: 0°C to 60°C (with current derating).
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
