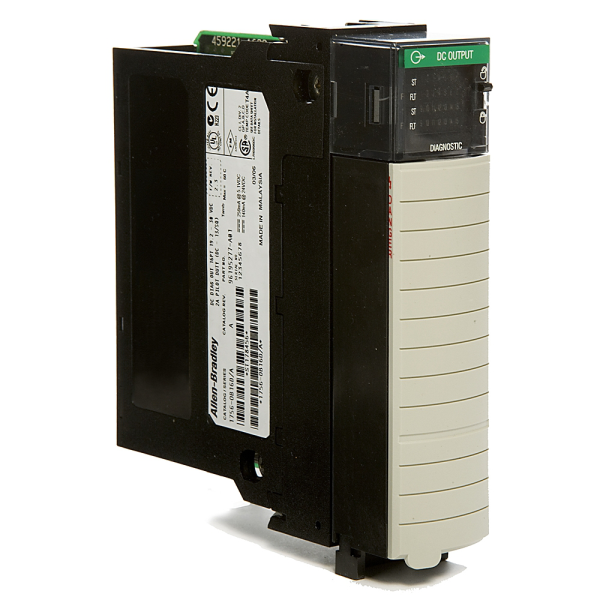

ControlLogix 16 Pt 24V DC D/O Module
SKU: 1756-OB16D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1756-OB16D is a high-performance digital output module intended for use with ControlLogix® programmable automation systems.
It has 16 source outputs that operate at 24V DC and features comprehensive diagnostic tools to monitor the health and state of each output.
This module is suited for industrial applications that require real-time defect detection, system dependability, and predictive maintenance.
It reduces downtime by detecting issues including open loads, short circuits, and overcurrent conditions, which are then sent directly to the controller.
16 digital outputs sourced from positive logic.
It operates at 24V DC and can deliver up to 1A per output.
Point-level diagnostics to improve fault detection.
LED indicators display channel status and fault circumstances.
Hot-swappable for convenient maintenance.
Compatible with the ControlLogix chassis and terminal blocks.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: DC, sourcing (positive logic).
Voltage Range: 19–30 V DC.
Nominal Voltage: 24 V DC.
Number of Outputs: 16.
Current per Output: Up to 1 A.
Total Module Current: 16 A max.
Minimum Load: 3 mA.
Leakage Current (Off State): < 0.5 mA.
Voltage Drop (On State): ≤ 1.2 V.
Electronic Fusing: Yes — protects against overcurrent.
Diagnostic Features:
Point-Level Diagnostics: Detects open wire, short circuit, and overcurrent conditions.
Status LEDs: Individual indicators for each output channel.
Fault Reporting: Integrated with controller for real-time alerts.
Hot-Swappable: Replaceable without shutting down the system.
Environmental Ratings:
Operating Temperature: –20°C to +55°C (–4°F to +131°F).
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Certifications: UL, CE, RoHS, Build America Buy America compliant.
Physical & Mounting:
Slot Requirement: 1 slot in ControlLogix chassis.
Terminal Block Compatibility:
1756-TBCH (screw clamp).
1756-TBS6H (spring clamp).
Form Factor: Standard ControlLogix I/O module.
Enclosure Type: Open style (requires panel enclosure).
