ControlLogix 16 Point D/O Module
SKU: 1756-OB16E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

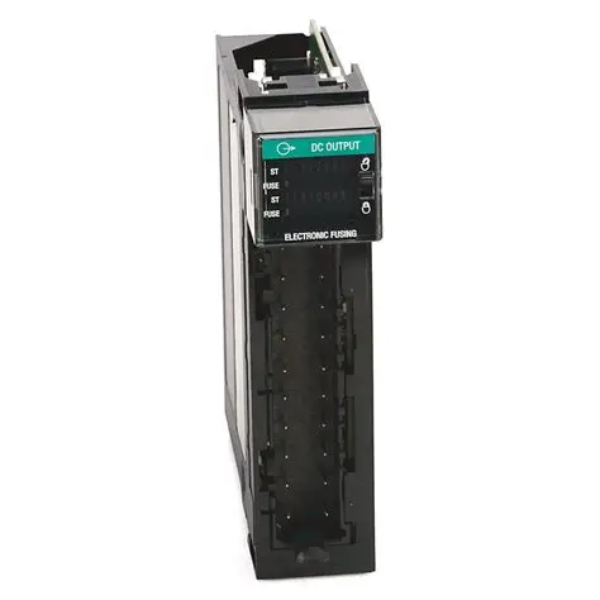

The 1756-OB16E is a high-performance DC digital output module for the ControlLogix platform that includes 16 sourcing outputs with sophisticated diagnostics and protection.
Each channel is electronically fused, ensuring immediate shutdown and reset in the event of overloads or short circuits, reducing the need for human fuse replacement and increasing system uptime.
This module is intended to switch 24V DC loads such as solenoids, relays, and pilot lights with rapid reaction times and accurate control.
It includes output status monitoring, fault detection, and time-stamped diagnostics, making it perfect for applications requiring high dependability and extensive troubleshooting.
With LED indications for each channel, hot-swappable capability, and smooth integration into any ControlLogix chassis, the 1756-OB16E performs well in harsh industrial situations.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Number of Outputs: 16 sourcing DC outputs.
Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Current Ratings:
2 A per channel.
8 A total per module.
Protection:
Electronic fusing (auto-resettable).
Overload and short-circuit detection.
Output Delay: Typically, <1 ms (on/off transitions).
Diagnostics & Features:
Advanced Diagnostics:
Output state monitoring.
Fault detection and reporting.
Time-stamped events for troubleshooting.
Status Indicators: Individual LEDs per output channel.
Hot-Swappable: Yes.
Environmental Ratings:
Operating Temperature: 0°C to 60°C.
Storage Temperature: –40°C to 85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Mechanical & Integration:
Platform: ControlLogix chassis based.
Connection: Requires RTB (Removable Terminal Block) or 1492 IFM (Interface Module).
Certifications: UL, CE, CSA.
