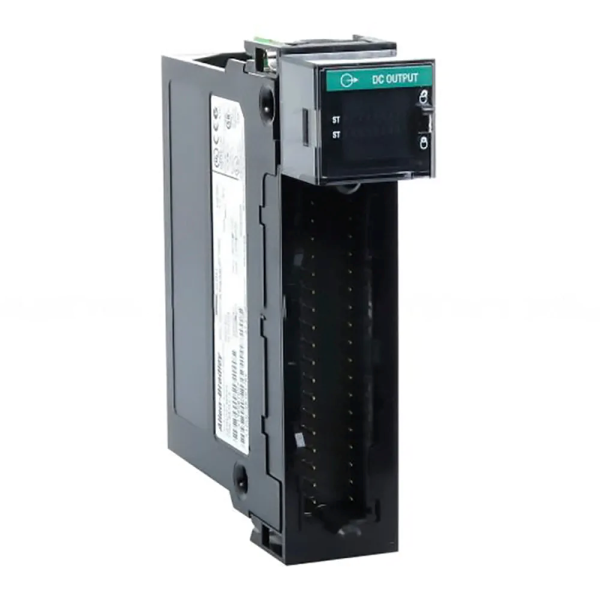

ControlLogix 16 Point D/O Module
SKU: 1756-OB16I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16I is a 16-point digital output module for the ControlLogix platform that is intended to control field devices running at 24V DC.
Each output channel is separately isolated, which improves protection and flexibility in systems with mixed voltages or electrically loud settings.
This module is perfect for controlling solenoids, relays, contactors, and other DC actuators.
Its separation reduces cross-channel interference and ensures safe operation when outputs are coupled to different voltage domains or grounding schemes.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Output Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Number of Outputs: 16 individually isolated channels.
Output Type: Sourcing (current flows from module to load).
Output Current:
1.0 A max per channel.
8.0 A max per module.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Protection Features:
Short-circuit protection.
Overload protection.
Thermal shutdown.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
