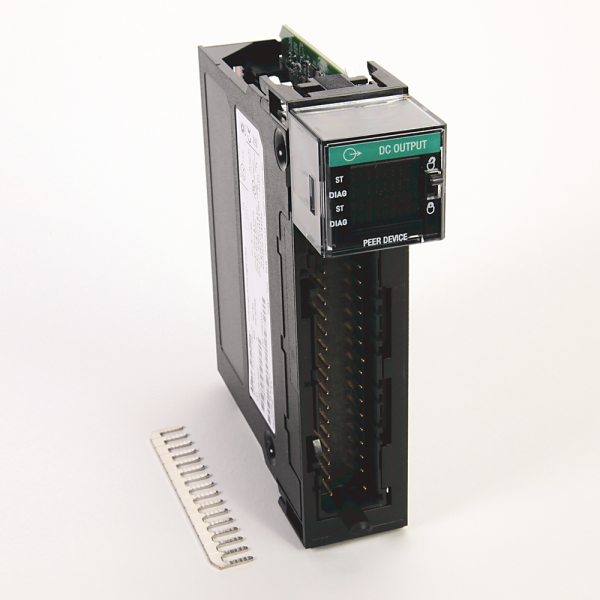

ControlLogix 16 Point Digital Output
SKU: 1756-OB16IEF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16IEF is a 16-point digital output module built for Rockwell Automation's ControlLogix® platform.
It generates high-speed, individually isolated DC outputs, making it perfect for demanding industrial automation applications.
Output: Sourcing (positive logic), 10-30VDC.
Isolation: Each output channel is electrically isolated to ensure maximum protection and signal integrity.
High-Speed Performance: With fast response times and support for Pulse Width Modulation (PWM), you can precisely control motors, valves, and other devices.
Diagnostics: Built-in fault detection and electronic fusing at each point help ensure safe and dependable operation.
CIP Sync Compatibility: Enables time-synchronized output updates for unified control across devices.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: DC Sourcing (positive logic).
Voltage Range: 10–30V DC.
Nominal Voltage: 24V DC.
Current per Output:
Up to 2 A @ 45°C (max 4 channels).
Up to 1 A @ 60°C (all channels).
Total Module Current:
8 A @ 45°C.
16 A @ 60°C.
Surge Current: 4 A for 10 ms (repeatable every 2 seconds).
Off-State Leakage: < 0.1 mA.
On-State Voltage Drop:
0.2 V DC @ 1 A.
0.4 V DC @ 2 A.
Timing & Performance:
Output Delay:
Off to On: 14 µs typical / 23 µs max.
On to Off: 14 µs typical / 23 µs max.
PWM Support:
Cycle Time: 1 ms to 1 hour.
Accuracy: ±20 µs.
Functional Features:
Channels: 16 individually isolated outputs.
Electronic Fusing: Per point.
Diagnostics:
Fault detection.
Status indication.
Configurable fault and program mode behaviour (Hold, On, Off).
Scheduled Outputs: Supports CIP Sync for time-based control.
Environmental Ratings:
Operating Temperature: –20°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Isolation Voltage:
250V continuous (channel-to-channel and channel-to-backplane).
Type tested at 2300V AC for 60 seconds.
Power & Physical:
Backplane Current Draw:
320 mA @ 5.1V DC.
3 mA @ 24V DC.
Power Dissipation: Max 4.9 W.
Thermal Dissipation: 16.71 BTU/hr.
Module Keying: Software configurable.
