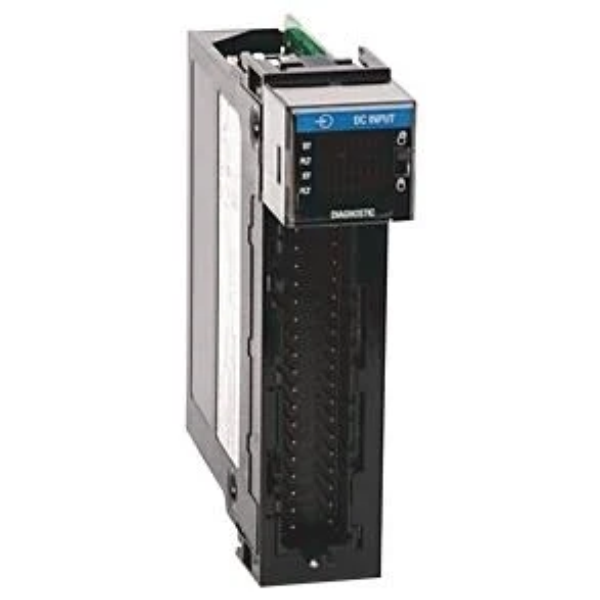

ControlLogix 16 Point Digital Output
SKU: 1756-OB16IEFK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16IEFK is a digital output module kit for the ControlLogix platform that is intended to control field devices operating at 24V DC.
This kit comprises the 1756-OB16IEF output module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adapter, making it ideal for systems that require high-speed, individually isolated DC outputs.
The module has 16 source outputs, each independently isolated, which improves noise immunity and allows for flexible wiring across voltage domains.
It supports electronic protection, diagnostics, and output status monitoring, making it appropriate for high-performance industrial applications like packing, material handling, and machine controls.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Output Type: Sourcing (current flows from module to load).
Number of Outputs: 16 individually isolated channels.
Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Output Current:
1.0 A max per channel.
8.0 A max per module.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Protection Features:
Short-circuit protection.
Overload protection.
Thermal shutdown.
Diagnostics:
Open load detection.
Output state feedback.
Fault indication.
Mechanical:
Kit Includes:
1756-OB16IEF module.
1756-CPR2 cable.
1756-PSCA2 adapter.
Mounting: External to chassis via adapter.
Status Indicators: One LED per output channel.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
