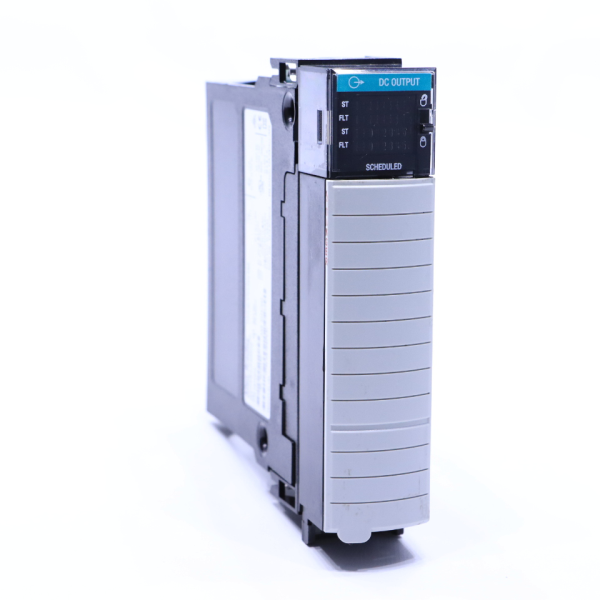

ControlLogix 16 Point Digital Output
SKU: 1756-OB16IEFS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16IEFS is a high-speed, electronically fused DC digital output module for the ControlLogix platform that includes 16 isolated source outputs.
Each channel is protected by auto-resettable electronic fusing, which prevents damage caused by short circuits or overloads without the need for operator intervention.
This module supports 12/24V DC loads and is designed for quick switching, making it perfect for controlling devices such as solenoids, relays, and pilot lights in time-sensitive applications.
Its channel-to-channel isolation boosts noise immunity and system reliability, particularly in electrically loud situations.
The 1756-OB16IEFS is designed for demanding industrial systems that require fault tolerance, precision, and low downtime. It includes built-in diagnostics, status LEDs, and hot-swappable capability.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Number of Outputs: 16 sourcing DC outputs.
Voltage Range: Up to 24V DC.
Nominal Voltage: 12/24V DC.
Current Rating: Up to 0.5 A per channel.
Protection:
Electronically fused (auto-resettable).
Overload and short-circuit detection.
Isolation: Channel-to-channel isolation for enhanced noise immunity.
Switching Speed: High-speed transitions for time-critical control.
Environmental Ratings:
Operating Temperature: –25°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
Mechanical & Integration:
Platform: ControlLogix chassis based.
Connection: Terminal block interface (RTB or 1492 IFM).
Status Indicators: LED per output channel.
Hot-Swappable: Yes.
Certifications: UL, CE.
