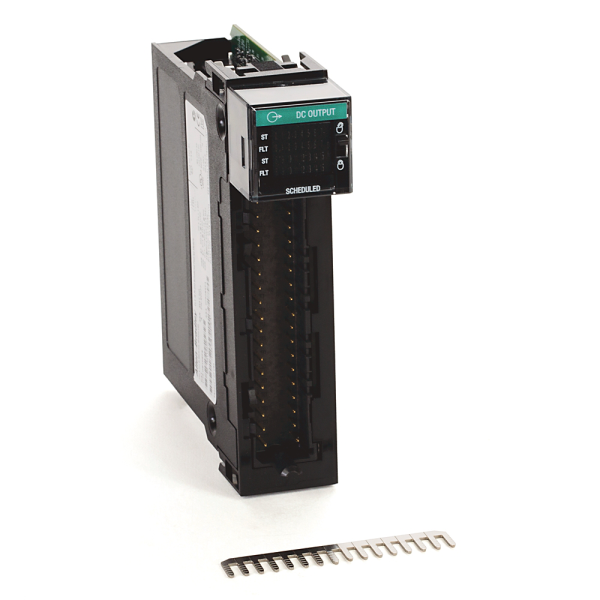

ControlLogix 16 Point Digital Output
SKU: 1756-OB16IEFSK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16IEFSK is a 16-point DC digital output module intended for high-speed, safety-critical operations.
It has segregated outputs, electrical fusing, and output state verification, making it excellent for systems requiring rapid reaction and fault tolerance.
The module enables position-based output control via the MAOC instruction, allowing for perfect synchronization with motion profiles.
The "K" suffix denotes conformal coating, which shields the module's internal circuitry from moisture, dust, and corrosive gasses – ideal for tough industrial situations such as chemical plants, mining operations, and outdoor installations.
This module is unique in that it may be utilized in remote chassis setups with motion control, making it an essential component of distributed automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: DC, sourcing.
Number of Outputs: 16 isolated points.
Voltage Range: 10–31.2 V DC.
Nominal Voltage: 24 V DC.
Output Current per Point: Up to 2 A.
Total Module Current: 16 A max.
Electronic Fusing: Yes — protects against overcurrent and short circuits.
Output State Verification: Confirms actual output matches commanded state.
Point Isolation: Each output is individually isolated for signal integrity.
Functional Features:
Safety Integration: Supports safety-rated applications.
Motion Synchronization: Compatible with MAOC (Motion Axis Output Cam) instruction.
Backplane Communication: High-speed data exchange with controller.
Diagnostics: Built-in fault detection and status reporting.
Use in Remote Chassis: Only module that supports MAOC in remote chassis configurations.
Environmental Ratings:
Operating Temperature: –25 °C to +70 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: Yes — “K” suffix indicates protection against moisture, dust, and corrosive gases.
Shock/Vibration: Meets industrial standards for rugged environments.
Physical Characteristics:
Mounting: Standard ControlLogix chassis slot.
Compatible Chassis: 1756 Series B and XT.
Lifecycle Status: Active.
Certifications: UL, CE, and others depending on region.
