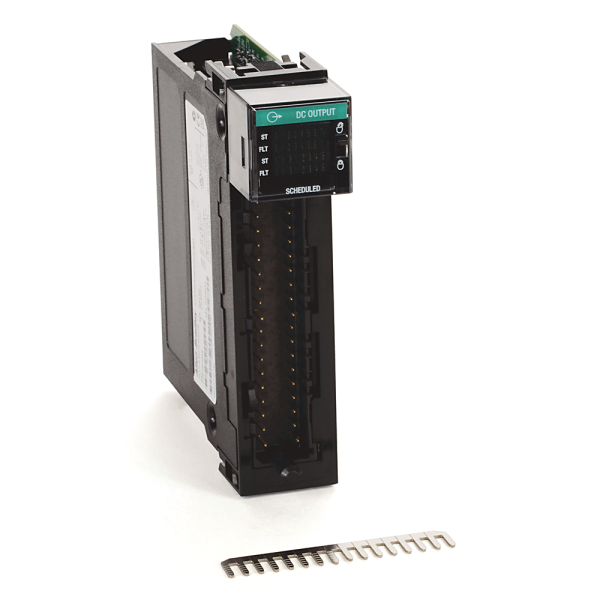

ControlLogix 16 Point D/O Module
SKU: 1756-OB16IK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB16IK is a 16-point DC digital output module intended for use with ControlLogix Series B and XT chassis.
It provides current-sourcing outputs that are independently separated, enabling for accurate signal separation and protection in complicated control systems.
Operating at 12/24V DC, the module can handle high-current loads such as solenoids, relays, and actuators because each output can handle up to 2 amps.
The "K" suffix denotes conformal coating, which shields the module's internal electronics from moisture, dust, and corrosive gasses, making it appropriate for severe industrial settings such as chemical plants, mining operations, and outdoor installations.
This module is widely used in discrete control applications that require quick switching, electrical isolation, and environmental robustness.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Output Type: DC, sourcing.
Number of Outputs: 16 individually isolated points.
Voltage Range: 10–30 V DC.
Nominal Voltage: 12/24 V DC.
Output Current per Point: Up to 2 A.
Total Module Current: 16 A max.
Point Isolation: Each output is electrically isolated from the others and from the backplane.
Connector Type: 36-pin terminal block.
Environmental Ratings:
Operating Temperature: –25 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: Yes — “K” suffix indicates protection against moisture, dust, and corrosive gases.
Shock/Vibration: Meets industrial standards for rugged environments.
Physical & Mounting:
Mounting: Standard ControlLogix chassis slot.
Compatible Chassis: ControlLogix Series B and XT.
Lifecycle Status: Active.
Certifications: UL, CE, and Build America Buy America compliant.
