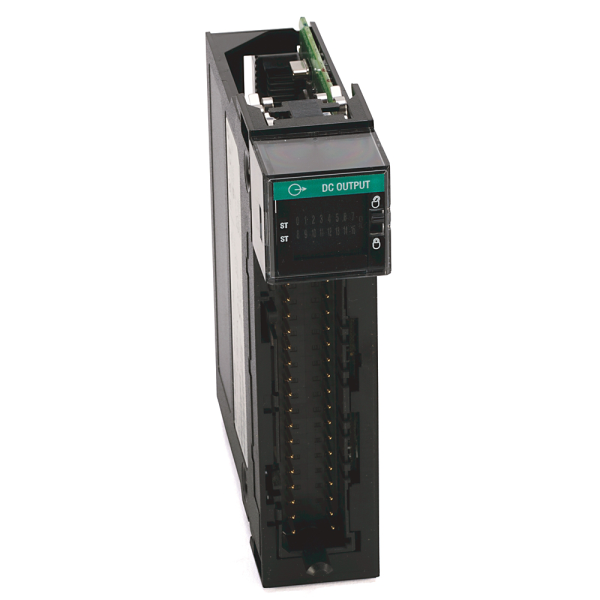

ControlLogix 16 Point D/O Module
SKU: 1756-OB16IS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Allen-Bradley 1756-OB16IS is a high-speed, isolated digital output module intended for use with ControlLogix® systems.
It has 16 individually separated source outputs, which allows for more flexible wiring and better protection against electrical problems.
CIP Sync allows you to regulate and synchronize each output individually, making it suitable for motion control, machine coordination, and time-critical automation applications.
This module has a 12/24V DC output, reliable current handling, and customizable fault states.
Its isolated architecture enhances noise immunity and system stability, particularly in settings with several signal types or severe electromagnetic interference.
16 sourcing DC outputs (each isolated).
Supports 10-30V DC and is ideal for 12/24V systems.
CIP Sync is activated for precise timing and synchronization.
Hot-swappable, resulting in minimal downtime.
Configurable fault states (Hold, On, and Off).
Suitable for high-speed, deterministic control applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output Type: DC, sourcing (positive logic).
Voltage Range: 10–30 V DC.
Nominal Voltage: 12/24 V DC.
Current Ratings:
Per Point:
2 A @ 30 °C.
1 A @ 60 °C.
Per Module:
8 A total @ 30 °C.
4 A total @ 60 °C.
Surge Current: 4 A for 10 ms (repeatable).
Leakage Current (Off State): < 0.5 mA.
Voltage Drop (On State): ≤ 1.2 V at full load.
Isolation: 250 V between outputs.
Timing & Synchronization:
Scheduled Output Support: Yes (CIP Sync required).
Timing Accuracy: ±16.7 µs.
Output Delay (On/Off):
On: < 1 ms.
Off: < 1 ms.
Fault Mode Behaviour: Configurable (Hold, On, Off).
Functional Features:
Number of Outputs: 16.
Isolation: Each output is individually isolated.
Hot-Swappable: Yes.
Minimum Load: 1 mA.
Diagnostics: Built-in fault detection and reporting.
Compatible Chassis: ControlLogix 1756 series.
Environmental Ratings:
Operating Temperature: 0 to 60 °C.
Storage Temperature: –40 to 85 °C.
Humidity: 5% to 95% non-condensing.
Vibration: 2 G @ 10–500 Hz.
Shock: 30 G.
Certifications: UL, CE, CSA, RoHS.
Physical Attributes:
Slot Requirement: 1 slot in ControlLogix chassis.
Connector Type: 36-pin RTB (Removable Terminal Block).
Dimensions: Approx. 145 mm x 35 mm x 140 mm.
Weight: ~0.25 kg.
Enclosure Type: Open style (requires panel enclosure).
