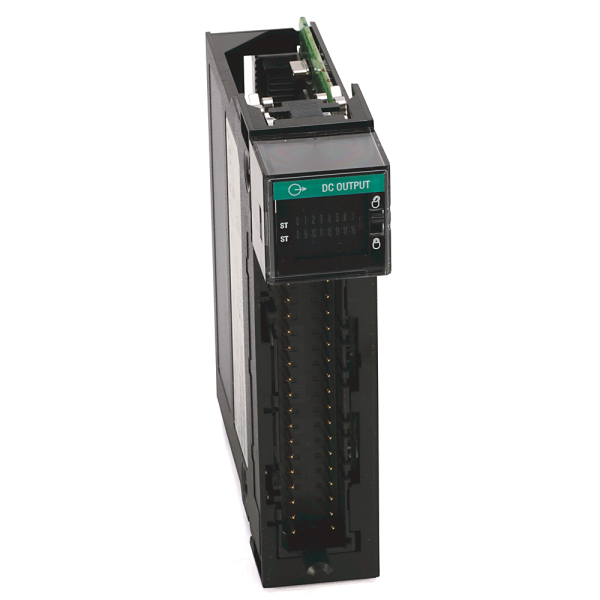

ControlLogix 32 Point Digital Output
SKU: 1756-OB32K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB32K is a 32-point DC digital output module intended for use with ControlLogix® programmable automation systems.
It generates current-sourcing outputs (positive logic) to control field devices such solenoids, contactors, indication lamps, and actuators.
Each output channel may produce up to 0.5 A, giving the module a total output capacity of 16 A at low temperatures.
The OB32K is distinguished by its conformal coating, represented by the letter "K," which shields the internal circuitry of the module from dust, moisture, and corrosive gasses.
This makes it perfect for severe industrial settings such as mining, chemical processing, and outdoor installations.
This module is designed for high-density output applications, providing dependable performance, quick reaction times, and easy interaction with ControlLogix chassis systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Output:
Output Type: DC, sourcing (positive logic).
Number of Outputs: 32 points.
Voltage Range: 10–31.2 V DC.
Nominal Voltage: 12/24 V DC.
Current per Output:
0.5 A max @ 30 °C.
0.35 A max @ 60 °C.
Total Module Current:
16 A max @ 30 °C.
10 A max @ 60 °C.
Minimum Load: 3 mA per point.
Leakage Current (Off State): < 0.5 mA.
Voltage Drop (On State): ≤ 1.2 V.
Protection & Diagnostics:
Output Protection: Electronic short-circuit protection.
Status Indicators: Individual LED indicators for each output.
Fault Detection: Open load and short-circuit diagnostics.
Isolation: No isolation between channels; all share common ground.
Power & Backplane:
Backplane Current Draw:
~300 mA @ 5 V DC.
~2 mA @ 24 V DC.
Power Dissipation: ~4.8 W max @ 60 °C.
Environmental Ratings:
Operating Temperature: –25 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational.
Vibration: 5 g from 10–500 Hz.
Conformal Coating: Yes — XT-rated for corrosive environments.
Physical & Mounting:
Chassis Compatibility: ControlLogix Series B and XT chassis.
Slot Requirement: Occupies 1 slot.
Compatible Terminal Blocks:
1756-TBCH (cage clamp).
1756-TBS6H (spring clamp).
Dimensions: Standard ControlLogix module size.
Weight: Approx. 0.3 kg (0.66 lb).
