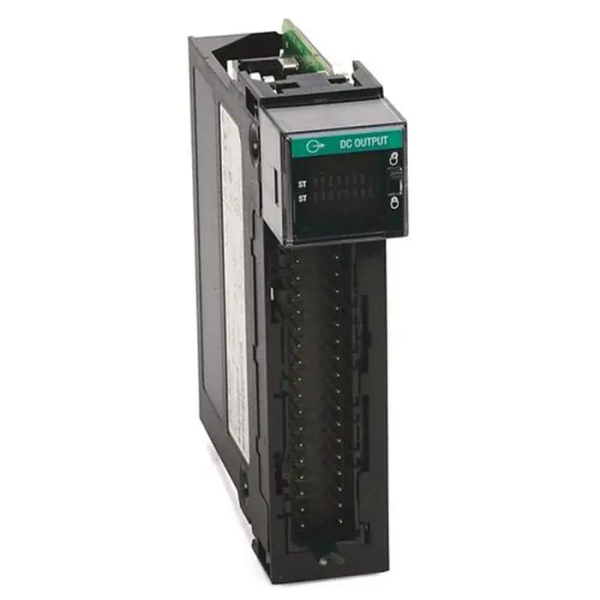

ControlLogix 8 Point D/O Module
SKU: 1756-OB8EI
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OB8EI is an 8-point digital output module for the ControlLogix platform that is intended to control field devices operating at 24V DC.
Each output channel is separately isolated, providing strong protection against electrical noise and enabling for flexible wiring across multiple voltage ranges.
This module is perfect for controlling DC actuators like solenoids, relays, and contactors.
It has increased electronic protection, including short-circuit and overload detection, and output status monitoring for better diagnostics and system reliability.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Output Type: Sourcing (current flows from module to load).
Number of Outputs: 8 individually isolated channels.
Voltage Range: 10–31.2V DC.
Nominal Voltage: 24V DC.
Output Current:
1.0 A max per channel.
8.0 A max per module.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Protection Features:
Short-circuit protection.
Overload protection.
Thermal shutdown.
Diagnostics:
Open load detection.
Output state feedback.
Fault indication.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: One LED per output channel.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
