      ControlLogix 8 Point D/O Module

      SKU: 1756-OC8

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 1756-OC8 is an 8-point DC digital output module developed for ControlLogix® systems, particularly for applications that require higher voltage source outputs. It operates in the 30-60V DC range, making it appropriate for industrial applications where 48V DC is commonly used, such as automotive, heavy machinery, and energy systems. Each output is divided into four groups, and the module provides 2 A per channel, allowing it to power high-current loads such as solenoids, contactors, and actuators. For field wiring, the module uses a 20-pin RTB (Removable Terminal Block) and connects neatly into the ControlLogix chassis. Hot-Swappable: Yes, replace while the power is on. Status indicators include individual LEDs for each output. Diagnostics: basic fault detection. Backplane current draw: around 165 mA at 5 V DC. Power dissipation is ~2.5 W maximum.

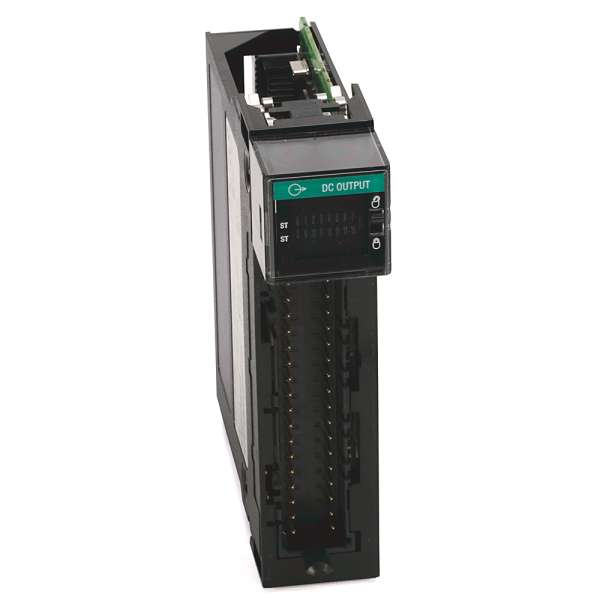

      1756-OC8
      Alternative image 1
      Electrical Specifications: Output Type: DC, sourcing (positive logic). Voltage Range: 30–60 V DC. Nominal Voltage: 48 V DC. Number of Outputs: 8 (grouped in 2 sets of 4). Current per Output: Up to 2 A. Total Module Current: 16 A max. Minimum Load: 3 mA. Leakage Current (Off State): < 0.5 mA. Voltage Drop (On State): ≤ 1.2 V. Functional Features: Hot-Swappable: Yes — replaceable while powered. Status Indicators: Individual LEDs for each output. Diagnostics: Basic fault detection. Backplane Current Draw: ~165 mA @ 5 V DC. Power Dissipation: ~2.5 W max. Environmental Ratings: Operating Temperature: 0 to 60 °C. Storage Temperature: –40 to 85 °C. Humidity: 5% to 95% non-condensing. Certifications: UL, CE, RoHS, Build America Buy America compliant. Physical & Mounting: Slot Requirement: 1 slot in ControlLogix chassis. Terminal Block: 20-pin RTB (e.g., 1756-TBNH). Mounting Style: Open style (requires enclosure).
