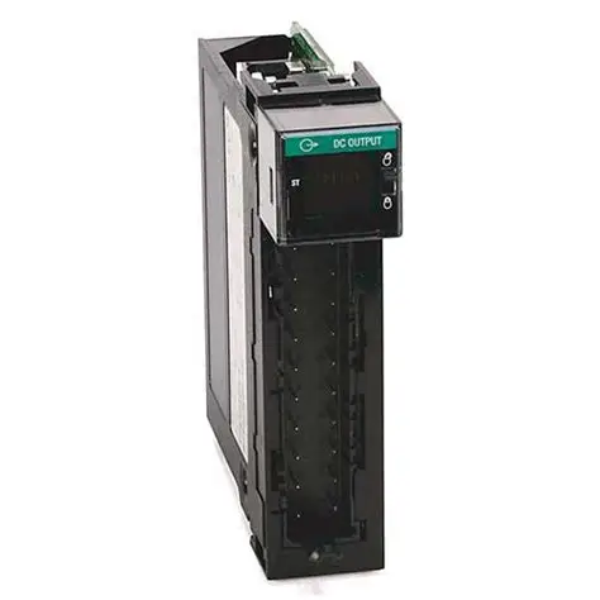

ControlLogix 8 Point D/O Module
SKU: 1756-OC8K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OC8K is a digital output module kit for the ControlLogix platform that is intended to control field devices with 5V DC TTL logic levels.
This kit comprises the 1756-OC8 output module, a 1756-CPR2 power cable, and a 1756-PSCA2 chassis adapter, making it ready for use in systems that require low-voltage digital control.
Each of the eight output channels is independently isolated, ensuring high noise immunity and safe interfacing with logic-level devices, embedded systems, and test equipment.
It's suited for high-speed digital applications including electronics production, semiconductor equipment, and automated testing.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Output Type: Sourcing (current flows from module to load).
Voltage Range: 4.5–5.5V DC.
Nominal Voltage: 5V DC.
Number of Outputs: 8 individually isolated channels.
Output Current:
0.5 A max per channel.
4.0 A max per module.
Isolation Voltage: 250V continuous (channel-to-channel and channel-to-backplane).
Protection Features:
Short-circuit protection.
Overload protection.
Thermal shutdown.
Mechanical:
Kit Includes:
1756-OC8 module.
1756-CPR2 cable.
1756-PSCA2 adapter.
Mounting: External to chassis via adapter.
Status Indicators: One LED per output channel.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
