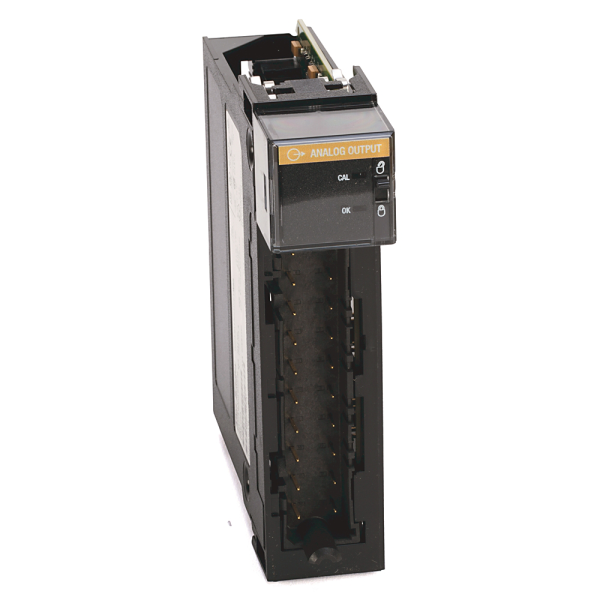

ControlLogix 4 Pt A/O I or V Module
SKU: 1756-OF4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OF4 is a four-channel analogue output module for the ControlLogix platform that can produce exact analogue signals in voltage or current format.
It's perfect for operating actuators, valves, motors, and other analogue devices in industrial automation systems.
Each output channel is individually customizable, allowing users to switch between current and voltage output modes.
The module's high-resolution output, robust diagnostics, and flexible scaling options make it ideal for process control, motion systems, and instrumentation.
Buy currently uses Select Automation shop pricing and checkout.
Analog Outputs:
Channels: 4.
Signal Types Supported:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 15 bits.
Accuracy: ±0.1% full scale (typical).
Output Drive Capability:
Voltage: 10 mA max.
Current: 0–20 mA into 0–1000 Ω load.
Isolation: Channel-to-backplane isolation; channels are not isolated from each other.
Update Rate: Configurable per channel.
Diagnostics:
Open circuit detection.
Output state monitoring.
Fault indication.
Mechanical:
Module Width: Single slot.
Removable Terminal Block (RTB): Required (e.g., 1756-TBNH or 1756-TBSH).
Status Indicators: LEDs for module and channel status.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
