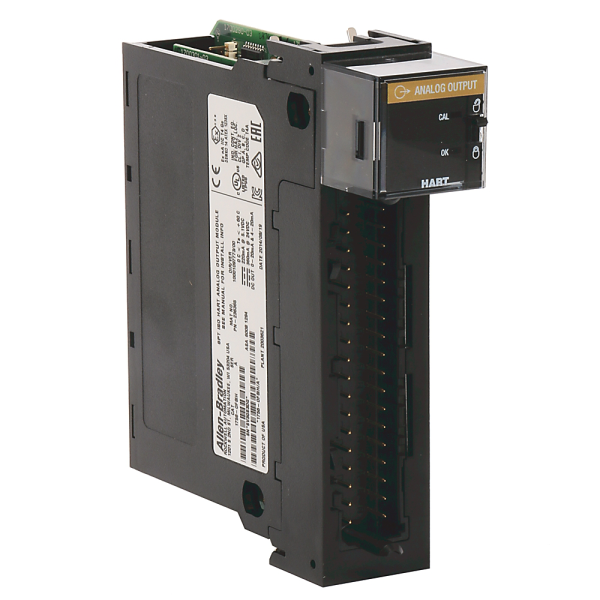

ControlLogix 8 Pt A/O HART Iso Module

Description: The 1756-OF8IHK is an advanced 8-channel analogue output module for ControlLogix systems that integrates high-precision current output, HART connectivity, and individual channel isolation. It's designed for harsh industrial conditions, with conformal coating that protects against moisture, dust, and corrosive substances. Each channel has 4-20 mA or 0-20 mA output and a dedicated HART modem for simultaneous analogue control and digital communication with smart field equipment such as transmitters and valves. This dual-layer capability allows for real-time diagnostics, remote configuration, and increased asset management—all without the need for additional wiring. Whether you're controlling a chemical plant, refining oil, or managing water treatment, the 1756-OF8IHK provides reliable performance, versatility, and intelligent connection in a single compact module. 8 isolated analogue output channels. Each channel runs separately, which reduces crosstalk and improves signal quality. HART Protocol Support Enables digital connection with field devices using normal 4-20 mA analogue wire. Each channel is equipped with a separate HART modem. Conformal Coating (HK version) offers greater protection against moisture, dust, and corrosive conditions, making it excellent for severe industrial situations. Flexible Output Ranges Current outputs range from 0 to 20 mA and 4 to 20 mA, which can be configured per channel. Advanced diagnostics. Open-circuit detection, short-circuit protection, and output ramping are included to prevent unexpected signal changes.
