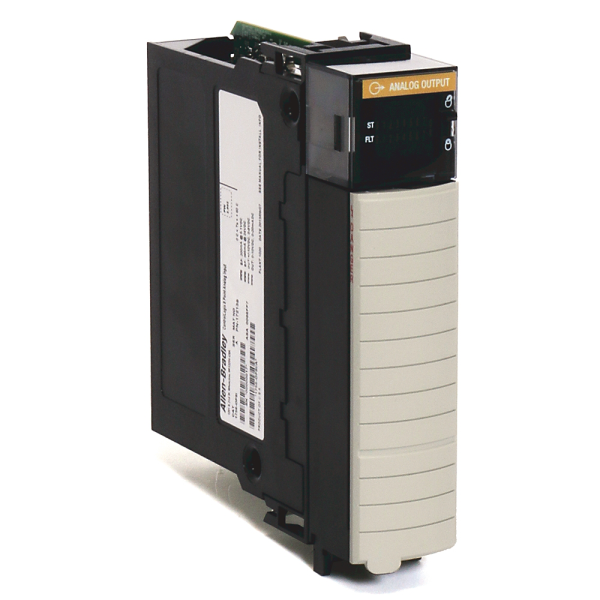

ControlLogix 8 Point Analog Output Isola
SKU: 1756-OF8IK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
An 8-point isolated analogue output module, the 1756-OF8IK was created by Allen-Bradley (Rockwell Automation) for use in ControlLogix® systems.
It generates high-precision analogue signals for industrial automation and process control applications, with each channel providing independent isolation to reduce noise and increase signal integrity.
This module's voltage and current output ranges, including ±10V and 0-20 mA or 4-20 mA, make it suitable for a variety of analogue devices.
With 16-bit resolution, it generates accurate and steady signals.
Built-in diagnostics enable real-time defect identification, and the conformal coating improves endurance in demanding settings.
The 1756-OF8IK is a dependable solution for engineers looking for precision and performance in their control systems.
Buy currently uses Select Automation shop pricing and checkout.
Output Configuration:
Channels: 8 individually isolated analogue outputs.
Signal Types:
Voltage: ±10V.
Current: 0–20 mA or 4–20 mA.
Resolution: 16-bit precision.
Load Capacity:
Voltage mode: ≥1000 Ω.
Current mode: Up to 1000 Ω.
Overvoltage Protection: –30V to +30V range.
Isolation & Diagnostics:
Channel Isolation: Each output is isolated from the others and from the backplane (50V continuous).
Fault Detection: Real-time alerts for open-circuit and short-circuit conditions.
Conformal Coating: Protects against moisture and dust.
Power & Thermal:
Power Dissipation: 6.5 W max.
Backplane Current Draw: 400 mA @ 24V DC.
Thermal Dissipation: ~22 BTU/hr.
Installation & Wiring:
Compatible Terminal Blocks:
1756-TBCH.
1756-TBS6H.
1756-TBNH.
1756-TBSH.
Recommended Wire Size: 14–22 AWG shielded copper, rated 90°C or higher.
Mounting: Standard ControlLogix chassis slot.
Environmental Ratings:
Operating Temperature: –20°C to +60°C.
Humidity: 5% to 95% non-condensing.
Dimensions: 237.5 × 183 × 55 mm.
Weight: Approx. 0.35 kg.
