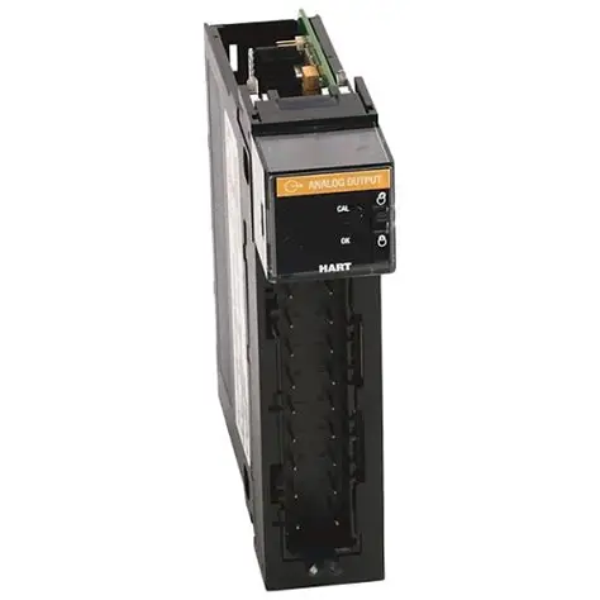

ControlLogix 8 Pt A/O I or V Module
SKU: 1756-OF8K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 1756-OF8K kit comprises the 1756-OF8 analogue output module as well as the necessary accessories for installation and operation in a ControlLogix system.
It has 8 analogue output channels, each of which may be configured for current or voltage output, making it excellent for controlling analogue devices like valves, motors, and actuators.
This kit streamlines deployment by including necessary components such as the 1756-CPR2 cable and 1756-PSCA2 chassis adapter, making it especially helpful for systems that require external mounting or have limited space.
Buy currently uses Select Automation shop pricing and checkout.
Analog Output Capabilities:
Channels: 8.
Signal Types:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 15-bit.
Accuracy: ±0.1% full scale (typical).
Drive Capability:
Voltage: up to 10 mA.
Current: up to 20 mA into 1000 Ω.
Isolation: Channel-to-backplane (channels not isolated from each other).
Diagnostics:
Open circuit detection.
Output state monitoring.
Fault indication.
Kit Contents:
1756-OF8 analogue output module.
1756-CPR2 cable.
1756-PSCA2 chassis adapter.
Mechanical & Software:
Module Width: Single slot.
RTB Required: e.g., 1756-TBNH or 1756-TBSH.
Status Indicators: LEDs for module and channel status.
Hot-Swappable: Yes (with RTB).
Configuration Software: Studio 5000 Logix Designer.
Environmental:
Operating Temperature: 0°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 5g.
